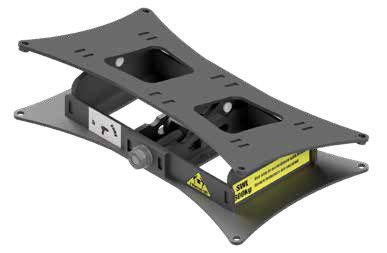

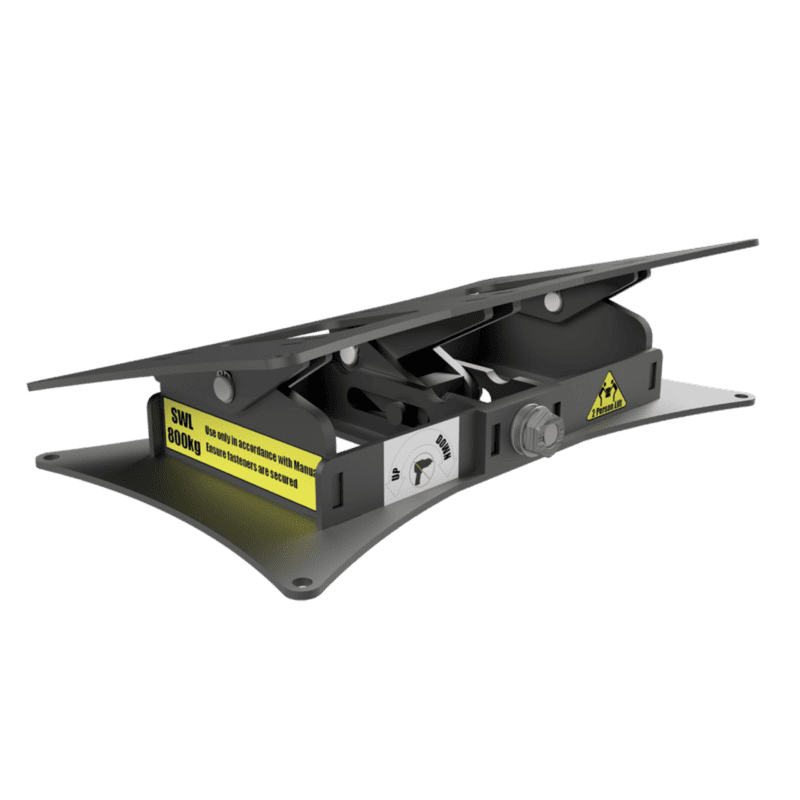

Low Profile Pivot Table

PART NO. TED-ATT-030-00
Download Spec Sheet

The LPPT is the perfect for supporting components on an angle and works in conjunction with other turntable mounting attachments such as the Sump Tray and Cutting Edge Attachments. The LPPT is capable of fine adjustment +/- 15 degrees and provides fitters with superior flexibility and control.

Safe Working Load: 800kg / 1,760lbs
Attachment Type: Turntable
Tare Weight: 25kg / 56lbs
Dimensions: (LxWxH)
565 x 335 x 115/160mm
22.3 x 13.2 x 4.6/6.3inch
Part No: TED-ATT-030-00

Used on
All Makes, Caterpillar, Hitachi, Komatsu, Liebherr Ultra Class
Complies with
AS1170.0:2002, AS1170.1:2002, AS2359.1:2015, AS2359.2:2013, AS4100:1998, AS4991:2004
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ATT-020-00

Double Sided Cutting Edge Tool

The Double Sided Cutting Edge Tool is designed to aid in routine CET maintenance, the Double Sided Cutting Edge Tool allows operators to remove, clean, turned and reinstall the CET. The Double Sided Cutting Edge Tool can be mounted onto any of the movement modules for greater alignment of components.
TED-ATT-014-00

Sump Tray

The Sump Tray is used primarily with either the Low Profile Pivot Table or Slope Jig to alter the table angle and can be used as either a flat tray or with a 45mm (1.8inch) edge around the frame.
TED-ATT-012-00

Extension Blocks

Get extra reach selected turntable attachments from the versatile Extension Blocks. Each block is 300mm high and may be stacked a maximum of 2 high with selected attachment secured to the top Extension Block. Extension Blocks are commonly used to reach steering components in conjunction with the Steer Cylinder Cradle or Slope Jig.
TED-ATT-036-00

Transmission Pump Tool

The Transmission Pump Tool can be rotated manually and incorporates an interchangeable mounting weldment allowing operators to use the tool for various pumps.
TED-ACC-004-00

Pit Rescue Trailer

Nivek’s Pit Rescue Trailer is built in-house and is made handle the toughest of haul roads and meet or exceed mine site requirements. Ideal for contractors working on multiple sites. It is the perfect way to transport TED from workshop to pit, or site to site. With a 2T rated axle, Landcruiser 5 stud tyres (spare included) and a frame constructed from 50x50x3mm Square Hollow Section and 3mm mild steel plate for the floor and walls, the Nivek Pit Rescue Trailer is extremely durable. The frame has been powder coated throughout to ensure it is protected from the elements and will remain in good condition for many years.
TED-ATT-018-00

Counter Balance

The Counter Balance is designed to be mounted onto the back of the table therefore increasing the lifting capacity of the front attachments. The Counter Balance comes with removable legs allowing for quick mounting and removal.
TED-ATT-003-01

Stand Locating Tool

Manoeuvre heavy axle stands under machinery with remote control ease. The Stand Locating Tool helps to protect against needless back and shoulder strains.
TED-ACC-001

Belly Plate Stand (4 legs)

Simple yet effective, this set of 4 sturdy legs will support the load of a belly plate up to 800kg, making TED available to continue with other jobs. These are perfect for the field where there is no access to forklifts and cranes. Used in the workshop these stands will save time and personnel waiting for a free forklift and operator.
TED-ATT-028-00

Sound Suppression Tray

The Sound Suppression Tray has been specifically designed to assist in the removal and installation of sound suppression panels.
