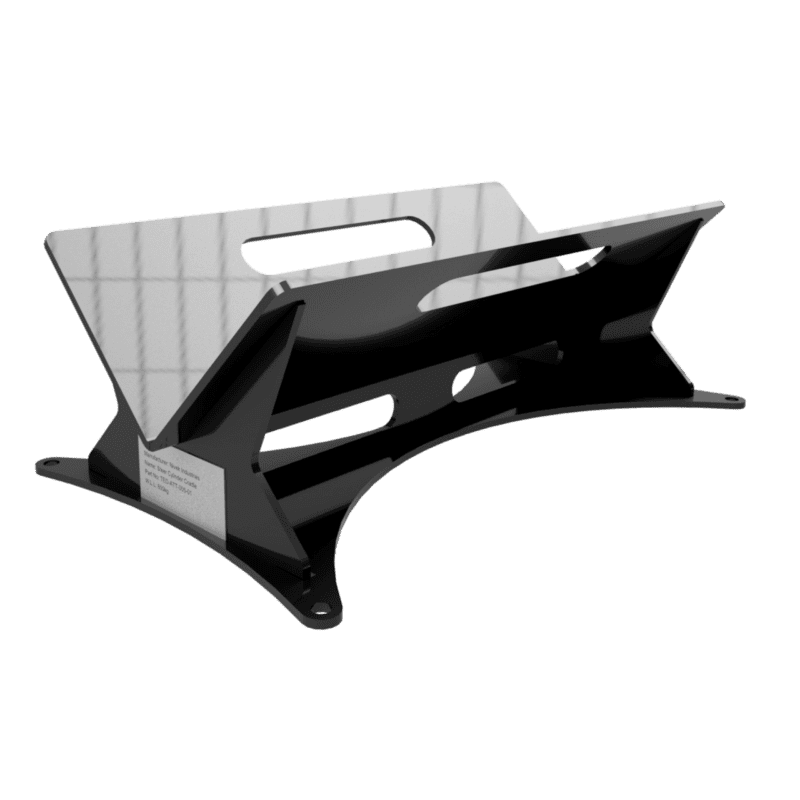

Steer Cylinder Cradle

PART NO. TED-ATT-005-01
Download Spec Sheet

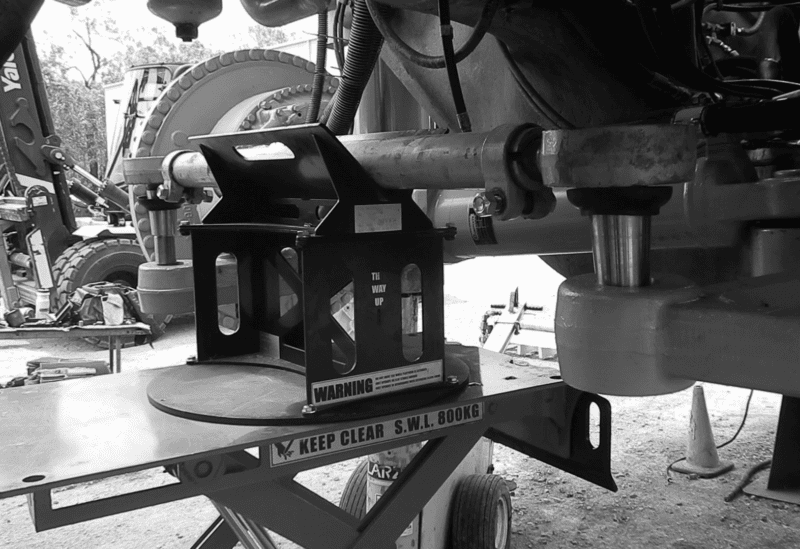

The Steer Cylinder Cradle is designed to support steer cylinders and other cylindrical components during removal and installation. The Steer Cylinder Cradle can be mounted onto any of the adaptor modules for greater alignment of components.

Safe Working Load: 800kg / 1,760lbs
Attachment Type: Turntable
Tare Weight: 15kg / 34lbs
Dimensions: (LxWxH)
570 x 340 x 200mm
22.4 x 13.4 x 7.9inch
Part No: TED-ATT-005-01

Used on
All Makes
Complies with
AS1554, AS4100:1998
