Lift Assist 80 - LA80

Introducing the LA80

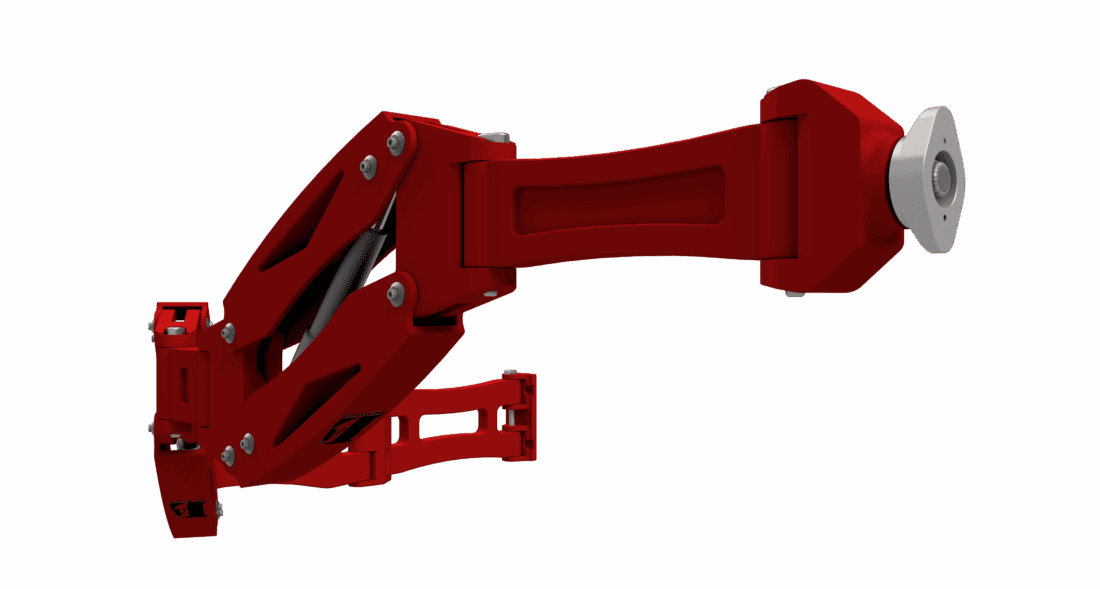

The next level in lifting capabilities, the Lift Assist 80 (LA80) makes light weight of heavy parts and components.

Reduce the risk of fatigue and musculoskeletal injuries with the Lift Assist 80 (LA80). A step up from the LA40, our upgraded lifting arm takes the heavy lifting out of large component installation and removal. Mount to BIG TED or a certified attachment point for smooth controllable support and precise alignment.

Key Features

Universal mounting point for custom cradles or tool holders
Two 8,000N independent linear actuators for highly controllable movements
Six points of articulation for complete 360-degree movement
Removable, rechargeable 24V batteries
Durable, machined aluminium body

Safe. Efficient. Reliable. Our Equipment

Benefits

Reduce manual handling and related operator injuries
Lift items of up to 80kg
Smooth and stable movement
Multiple articulation points for precise alignment
Customisable to suit your needs

View Our Attachment Range

Technical Specifications

Tare Weight (kg/lbs)	20 / 45
Safe Working Load (kg/lbs)	80 / 176
Material	Rigid billet aluminium body with stainless steel pins
Degrees of movement	Six points of articulation and swivel head for complete freedom of movement
Actuators	Two 24V 8,000N independent linear actuators
Part Number	AGA-ARM-80-100
Complies With	AS1170.0, AS1170.1, AS4100, AS4673, AS4991

Specification Sheet Download PDF

Safety & Productivity

Minimise the risk of operator injuries while maximising personnel potential in a safe and supported environment.

Complete Control

Two linear actuators offer smooth controllable lift while multiple points of articulation enable stable and precise component alignment.

Interchangeable Attachments

The LA80 can be fitted with an ever-expanding variety of tool holders and cradles to help move and secure heavy components.
