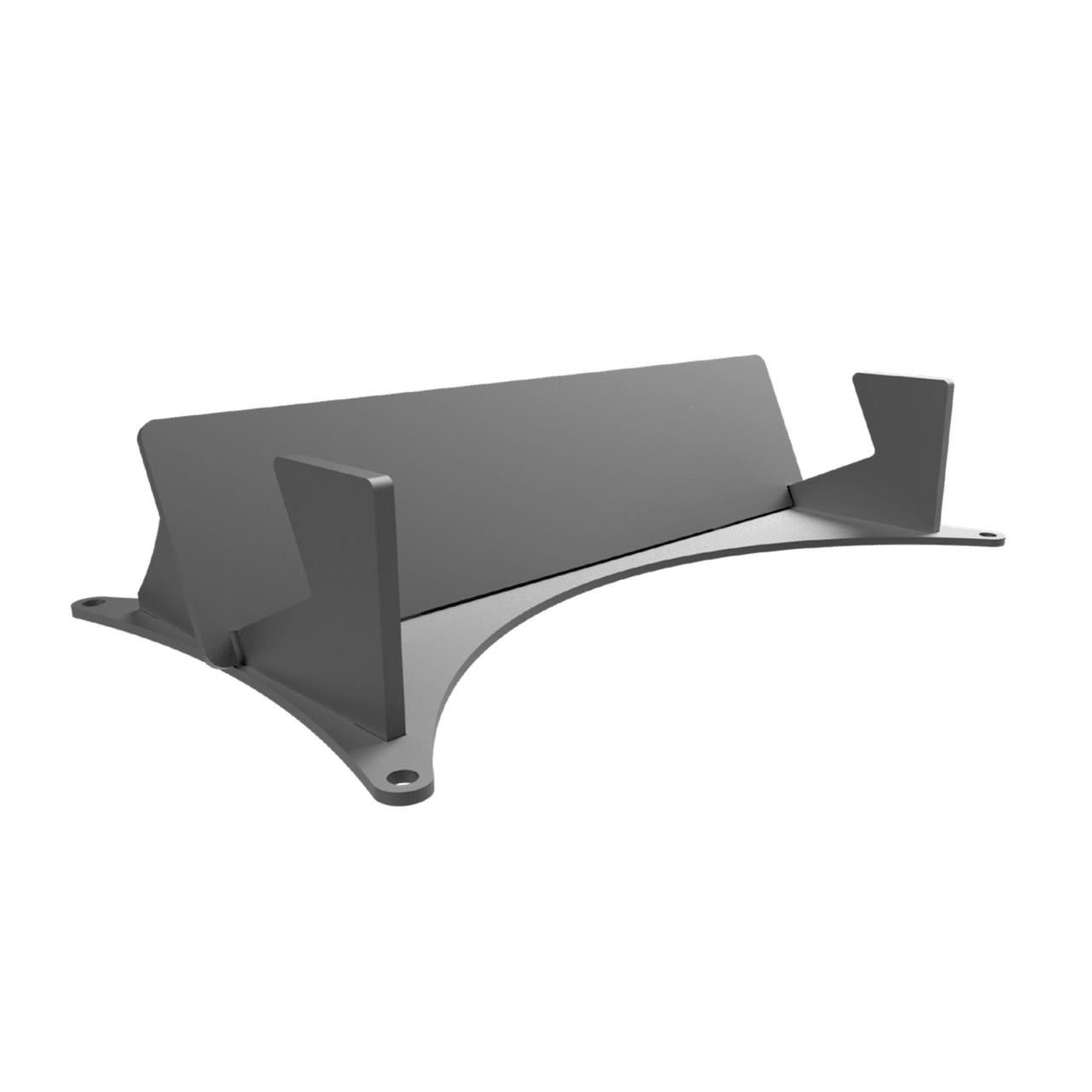

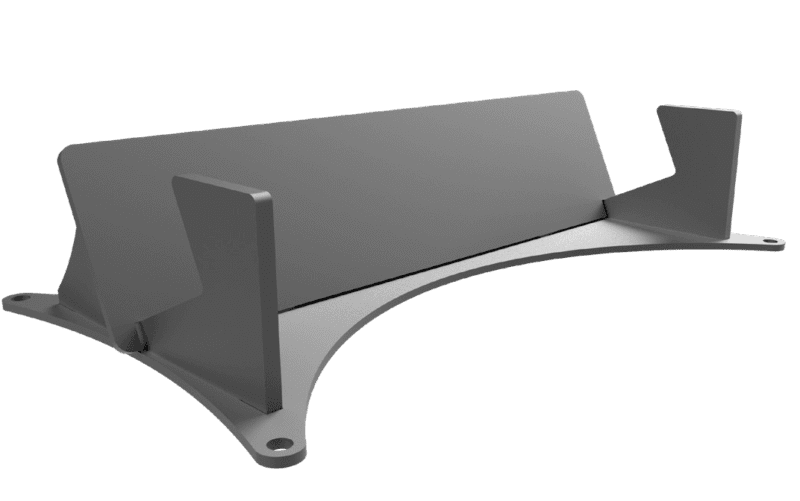

Cutting Edge Tool

PART NO. TED-ATT-006-01
Download Spec Sheet

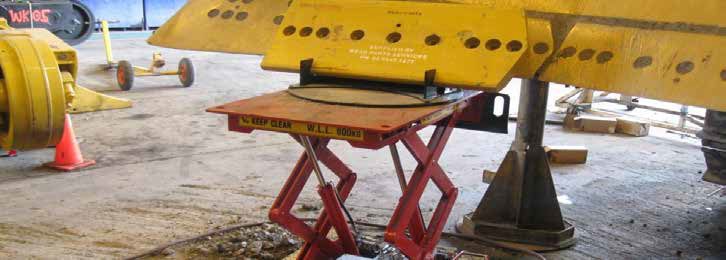

The Cutting Edge Tool is used to lower manual handling on CET maintenance. Rest the CET due for removal in the Cutting Edge Tool and lift or lower into place via TED’s remote control operation. The Cutting Edge Tool can be mounted onto any of the adaptor modules for greater alignment of components.

Safe Working Load: 800kg / 1,760lbs
Attachment Type: Turntable
Tare Weigh: 10kg /23lbs
Dimensions: (LxWxH)
570 x 340 x 200mm
22.4 x 13.4 x 7.9inch
Part No: TED-ATT-006-01

Used on
All Makes, Caterpillar, Hitachi, Komatsu
Complies with
AS1554, AS3990, AS4100:1998
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ATT-021-00

Grader Cutting Edge

The Grader Cutting Edge Tool can be utilised to take the weight of the CET from a variety of graders. The attachment is fitted with two (2) adjustment bolts which can be tightened to assist in stabilising the CET during transit and installation. When used by itself the Grader Cutting Edge has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-035-00

Side Shift

The Side Shift module attaches to the turntable and allows operators to mount various other component specific attachments onto it. The module can be manually adjusted +/- 50mm (2inch) sideways allowing operators greater control when lining up components during installation.
TED-ATT-044-00

Brake/Steer Pump

The Brake/Steer Pump Tool can be manually pivoted +/- 5 degrees to allow for spline alignment and incorporates an interchangeable pump mounting weldment allowing operators to use the tool for various pumps.
TED-ATT-025-00

Strut Spindle Cap Tool

Strut Spindle Caps of various sizes can be safely removed and replaced using the SSCT. The three (3) threaded bolts offer width and angle adjustment to accommodate varying strut spindle caps. The SSCT is designed to take the weight of the strut spindle cap and removal tool only. The strut itself must be supported as per manufacturers specifications.
TED-ATT-041-00

Slope Jig

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.
TED-ATT-018-00

Counter Balance

The Counter Balance is designed to be mounted onto the back of the table therefore increasing the lifting capacity of the front attachments. The Counter Balance comes with removable legs allowing for quick mounting and removal.
TED-ACC-004-00

Pit Rescue Trailer

Nivek’s Pit Rescue Trailer is built in-house and is made handle the toughest of haul roads and meet or exceed mine site requirements. Ideal for contractors working on multiple sites. It is the perfect way to transport TED from workshop to pit, or site to site. With a 2T rated axle, Landcruiser 5 stud tyres (spare included) and a frame constructed from 50x50x3mm Square Hollow Section and 3mm mild steel plate for the floor and walls, the Nivek Pit Rescue Trailer is extremely durable. The frame has been powder coated throughout to ensure it is protected from the elements and will remain in good condition for many years.
TED-ATT-033-00

Elevated Table

The Elevated Table provides operators with an additional 600mm (23.6inch) of reach whilst not compromising stability. The Elevated Table has its own built in turntable which other attachments can be bolted onto.
TED-ATT-023-00

Front Belly Plate Cradle

The Front Belly Plate Cradle is designed to support the Front Belly Plate of D-11 dozers at the right angle for safe removal and transportation. The raised platform provides additional stability for the belly plate by holding it horizontal and allows it to be rotated on the turntable which allows it to be maneuvered between the ripper tine and the tracks.
