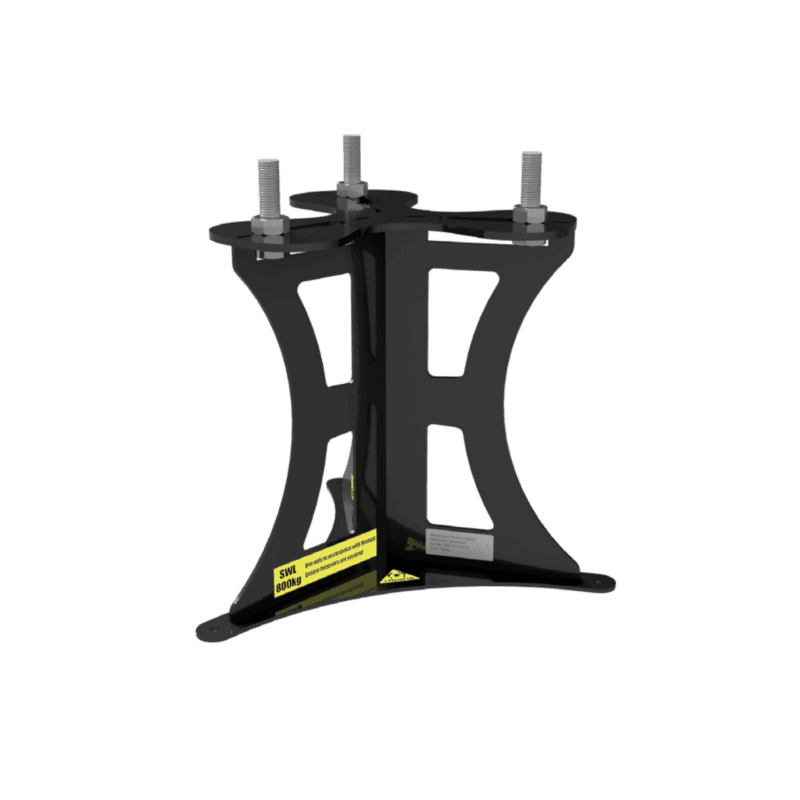

Strut Spindle Cap Tool

PART NO. TED-ATT-025-00

Strut Spindle Caps of various sizes can be safely removed and replaced using the SSCT. The three (3) threaded bolts offer width and
angle adjustment to accommodate varying strut spindle caps. The SSCT is designed to take the weight of the strut spindle cap and removal tool only. The strut itself must be supported as per manufacturers specifications.

Safe Working Load: 800kg / 1,760lbs
Attachment Type: Turntable
Tare Weight: 27kg / 60lbs
Dimensions: (LxWxH)
550 x 550 x 600mm
21.7 x 21.7 x 23.6inch
Part No: TED-ATT-025-00

Used on
Caterpillar
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ACC-003-00

TED’s Home

Keep TED and attachments neatly stored away in TED’s Home. TED’s Home has tie down points and forklift guides to allow users to transport the whole system if required. The attachment storage system allows easy access and secure fixing points for multiple TED attachments. There is a upper shelf where users can store attachments and a hanging frame for turntable mounted attachments.
TED-ATT-020-00

Double Sided Cutting Edge Tool

The Double Sided Cutting Edge Tool is designed to aid in routine CET maintenance, the Double Sided Cutting Edge Tool allows operators to remove, clean, turned and reinstall the CET. The Double Sided Cutting Edge Tool can be mounted onto any of the movement modules for greater alignment of components.
TED-ATT-021-00

Grader Cutting Edge

The Grader Cutting Edge Tool can be utilised to take the weight of the CET from a variety of graders. The attachment is fitted with two (2) adjustment bolts which can be tightened to assist in stabilising the CET during transit and installation. When used by itself the Grader Cutting Edge has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-035-00

Side Shift

The Side Shift module attaches to the turntable and allows operators to mount various other component specific attachments onto it. The module can be manually adjusted +/- 50mm (2inch) sideways allowing operators greater control when lining up components during installation.
TED-ATT-038-00

Universal Mounting System

The Universal Mounting System was designed to allow operators to arrange different types of support frames in a multitude of configurations depending on the task they wish to perform. The Universal Mounting Plate has a series of M12 screw points laid out in a 6x9 grid at 75mm (3inch) spacing, allowing operators to fix the brackets on either orientation. The support frames can be combined with tie down points (e.g. M12 eyebolt) to effectively support and secure all sorts of different shaped loads.
TED-ATT-012-00

Extension Blocks

Get extra reach selected turntable attachments from the versatile Extension Blocks. Each block is 300mm high and may be stacked a maximum of 2 high with selected attachment secured to the top Extension Block. Extension Blocks are commonly used to reach steering components in conjunction with the Steer Cylinder Cradle or Slope Jig.
TED-ATT-032-00

Forward Shift

The Forward Shift module attaches to the turntable and allows operators to mount various other component specific attachments onto it. The module can be manually adjusted +/- 40mm (1.6inch) forwards or rearwards allowing operators greater control when lining up components during installation.
TED-ATT-043-00

Steering Arm

The Steering Arm Tool has been specifically designed to assist in the removal and installation of the Komatsu 930E Steering Arm. Due to the weight of the attachment, it has been designed to be forkliftable even when carrying a steering arm.
TED-ATT-041-00

Slope Jig

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.
