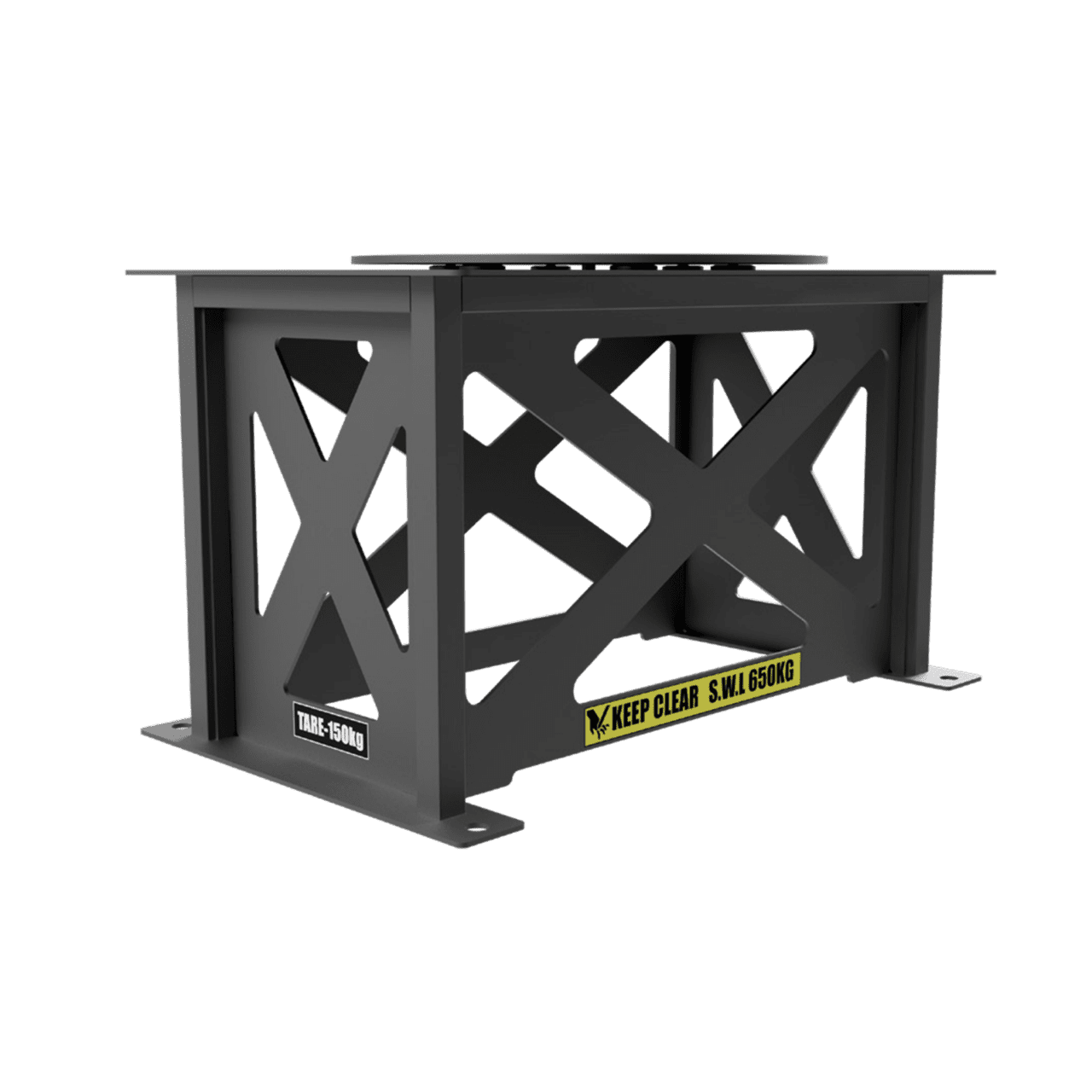

Elevated Table

PART NO. TED-ATT-033-00

The Elevated Table provides operators with an additional 600mm (23.6inch) of reach whilst not compromising stability. The Elevated Table has its own built in turntable which other attachments can be bolted onto.

Safe Working Load: 650kg / 1,430lbs
Attachment Type: Turntable
Tare Weight: 150kg / 330lbs
Dimensions: (LxWxH)
1080 x 650 x 630mm
42.6 x 25.6 x 24.9inch
Part No: TED-ATT-033-00

Used on
All Makes, Caterpillar, Hitachi, Komatsu, Liebherr Ultra Class
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ATT-020-00

Double Sided Cutting Edge Tool

The Double Sided Cutting Edge Tool is designed to aid in routine CET maintenance, the Double Sided Cutting Edge Tool allows operators to remove, clean, turned and reinstall the CET. The Double Sided Cutting Edge Tool can be mounted onto any of the movement modules for greater alignment of components.
TED-ATT-018-00

Counter Balance

The Counter Balance is designed to be mounted onto the back of the table therefore increasing the lifting capacity of the front attachments. The Counter Balance comes with removable legs allowing for quick mounting and removal.
TED-ATT-041-00

Slope Jig

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.
TED-ATT-034-00

Boomerang Stand

Designed to assist in positioning Boomerang Stands into position. The attachment has been designed to carry the Boomerang Stand in three different positions to allow operators to place the stands up against a wall or obstacle. When used by itself the Boomerang Stand has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-010-00

Track Roller Carrier

The Track Roller Carrier’s intended purpose is to aid in the removal and replacement of track rollers, lowering the manual handling component and removing the need for placing hands in harm’s way. When used by itself the Track Roller Carrier has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-014-00

Sump Tray

The Sump Tray is used primarily with either the Low Profile Pivot Table or Slope Jig to alter the table angle and can be used as either a flat tray or with a 45mm (1.8inch) edge around the frame.
TED-ATT-021-00

Grader Cutting Edge

The Grader Cutting Edge Tool can be utilised to take the weight of the CET from a variety of graders. The attachment is fitted with two (2) adjustment bolts which can be tightened to assist in stabilising the CET during transit and installation. When used by itself the Grader Cutting Edge has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-005-01

Steer Cylinder Cradle

The Steer Cylinder Cradle is designed to support steer cylinders and other cylindrical components during removal and installation. The Steer Cylinder Cradle can be mounted onto any of the adaptor modules for greater alignment of components.
TED-ATT-025-00

Strut Spindle Cap Tool

Strut Spindle Caps of various sizes can be safely removed and replaced using the SSCT. The three (3) threaded bolts offer width and angle adjustment to accommodate varying strut spindle caps. The SSCT is designed to take the weight of the strut spindle cap and removal tool only. The strut itself must be supported as per manufacturers specifications.
