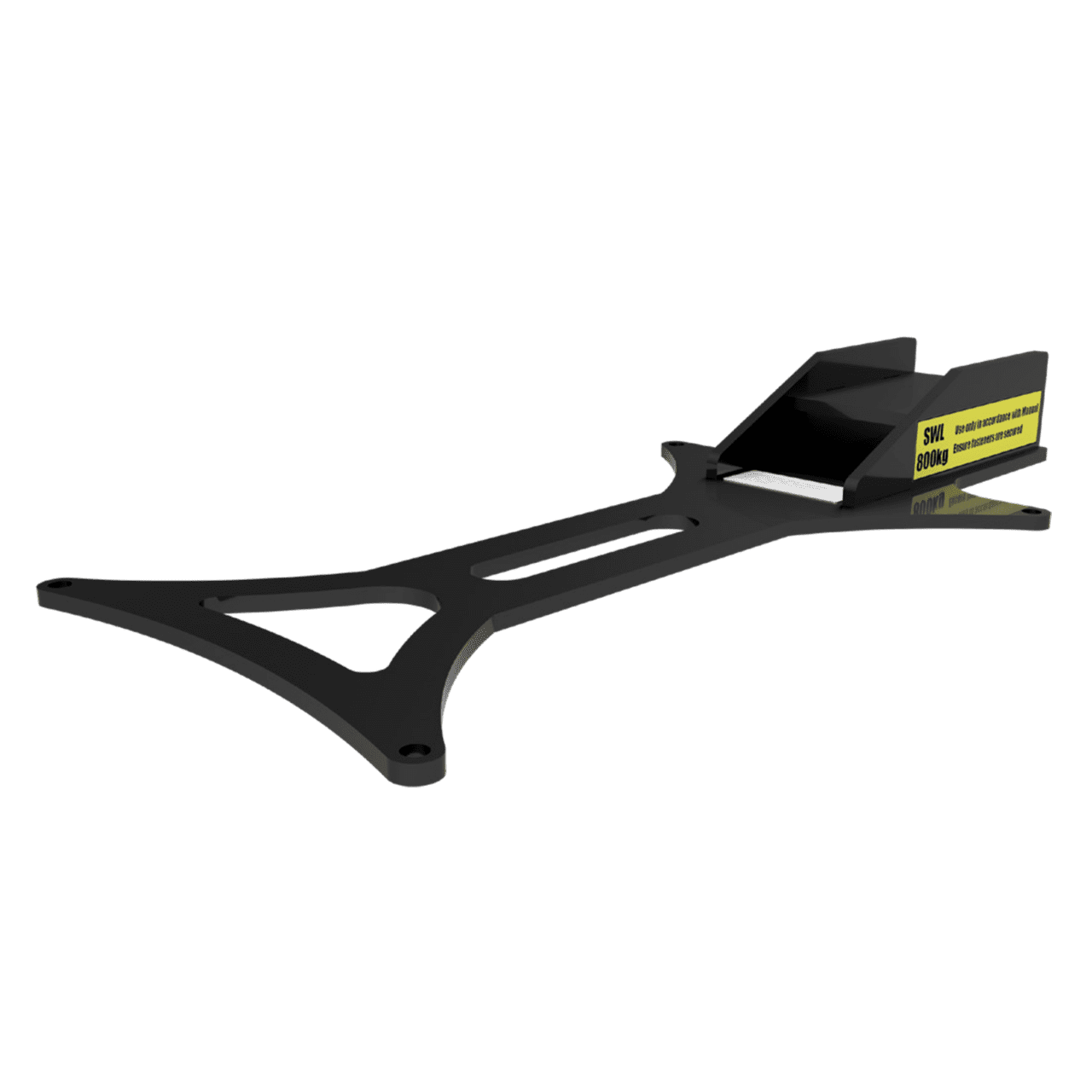

Front Belly Plate Cradle

PART NO. TED-ATT-023-00
Download Spec Sheet

The Front Belly Plate Cradle is designed to support the Front Belly Plate of D-11 dozers at the right angle for safe removal and transportation. The raised platform provides additional stability for the belly plate by holding it horizontal and allows it to be rotated on the turntable which allows it to be maneuvered between the ripper tine and the tracks.

Safe Working Load: 800kg / 1,760lbs
Attachment Type: Turntable
Tare Weight: 13kg / 29lbs
Dimensions: (LxWxH)
745 x 335 x 90mm
29.3 x 13.2 x 3.5inch
Part No: TED-ATT-023-00

Used on
Caterpillar
Complies with
AS1170.0:2002, AS1170.1:2002, AS2359.1:2015, AS2359.2:2013, AS4100:1998, AS4991:2004
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ATT-036-00

Transmission Pump Tool

The Transmission Pump Tool can be rotated manually and incorporates an interchangeable mounting weldment allowing operators to use the tool for various pumps.
TED-ATT-028-00

Sound Suppression Tray

The Sound Suppression Tray has been specifically designed to assist in the removal and installation of sound suppression panels.
TED-ATT-033-00

Elevated Table

The Elevated Table provides operators with an additional 600mm (23.6inch) of reach whilst not compromising stability. The Elevated Table has its own built in turntable which other attachments can be bolted onto.
TED-ATT-032-00

Forward Shift

The Forward Shift module attaches to the turntable and allows operators to mount various other component specific attachments onto it. The module can be manually adjusted +/- 40mm (1.6inch) forwards or rearwards allowing operators greater control when lining up components during installation.
TED-ATT-031-00

Front Jib Attachment

Manoeuvre awkward objects from above with the all purpose Front Jib Attachment. Three different extension lengths add to the versatility of the Front Jib Attachment.
TED-ATT-044-00

Brake/Steer Pump

The Brake/Steer Pump Tool can be manually pivoted +/- 5 degrees to allow for spline alignment and incorporates an interchangeable pump mounting weldment allowing operators to use the tool for various pumps.
TED-ATT-041-00

Slope Jig

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.
TED-ATT-034-00

Boomerang Stand

Designed to assist in positioning Boomerang Stands into position. The attachment has been designed to carry the Boomerang Stand in three different positions to allow operators to place the stands up against a wall or obstacle. When used by itself the Boomerang Stand has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-024-00

Corner Cutting Edge Tool

The CCET is fully adjustable making it perfect for corner CET. Operators can adjust the support pins in any combination of holes to achieve and angle of up to +/- 10 degrees. The CCET also has two retaining bolts which can be used to support different CET thicknesses. The CCET works best when combined with the Low Profile Pivot Table allowing it to be aligned with the angle of the CET being removed/installed.
