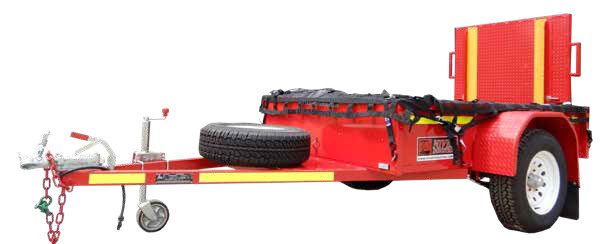

Pit Rescue Trailer


Nivek’s Pit Rescue Trailer is built in-house and is made handle the toughest of haul roads and meet or exceed mine site requirements. Ideal for contractors working on multiple sites. It is the perfect way to transport TED from workshop to pit, or site to site. With a 2T rated axle, Landcruiser 5 stud tyres (spare included) and a frame constructed from 50x50x3mm Square Hollow Section and 3mm mild steel plate for the floor and walls, the Nivek Pit Rescue Trailer is extremely durable. The frame has been powder coated throughout to ensure it is protected from the elements and will remain in good condition for many years.

A spring assisted tail gate can be pulled down to become an access ramp for TED, allowing it to be unloaded and loaded independently. The ramp has built in guide rails and anti-slip coating to assist operators when driving up the ramp. Attachment storage pockets have been built into the frame allowing operators to store and transport the required attachments to the job site. A heavy-duty cargo net is also provided to ensure the attachments stay in the trailer during transport.

Tare weight (kg/lbs): 660kg / 1,456lbs
Payload (kg/lbs): 1,000kg / 2,205lbs
GVM (kg/lbs): 2,000kg / 4,410lbs
Brake System: Lockable mechanical brake
Wheel: Landcrusier 5 stud rim
227/75 R16 Tyres
Spring: Leaf Spring
Tow Hitch: Trailer Coupling Plated (Ball Hitch) 2,000kg rating
Ramp: Spring assisted tailgate with spring loaded latches
Cargo Net: 1,000kg / 2,200lbs rated cargo net
Part No: TED-ACC-004-00
