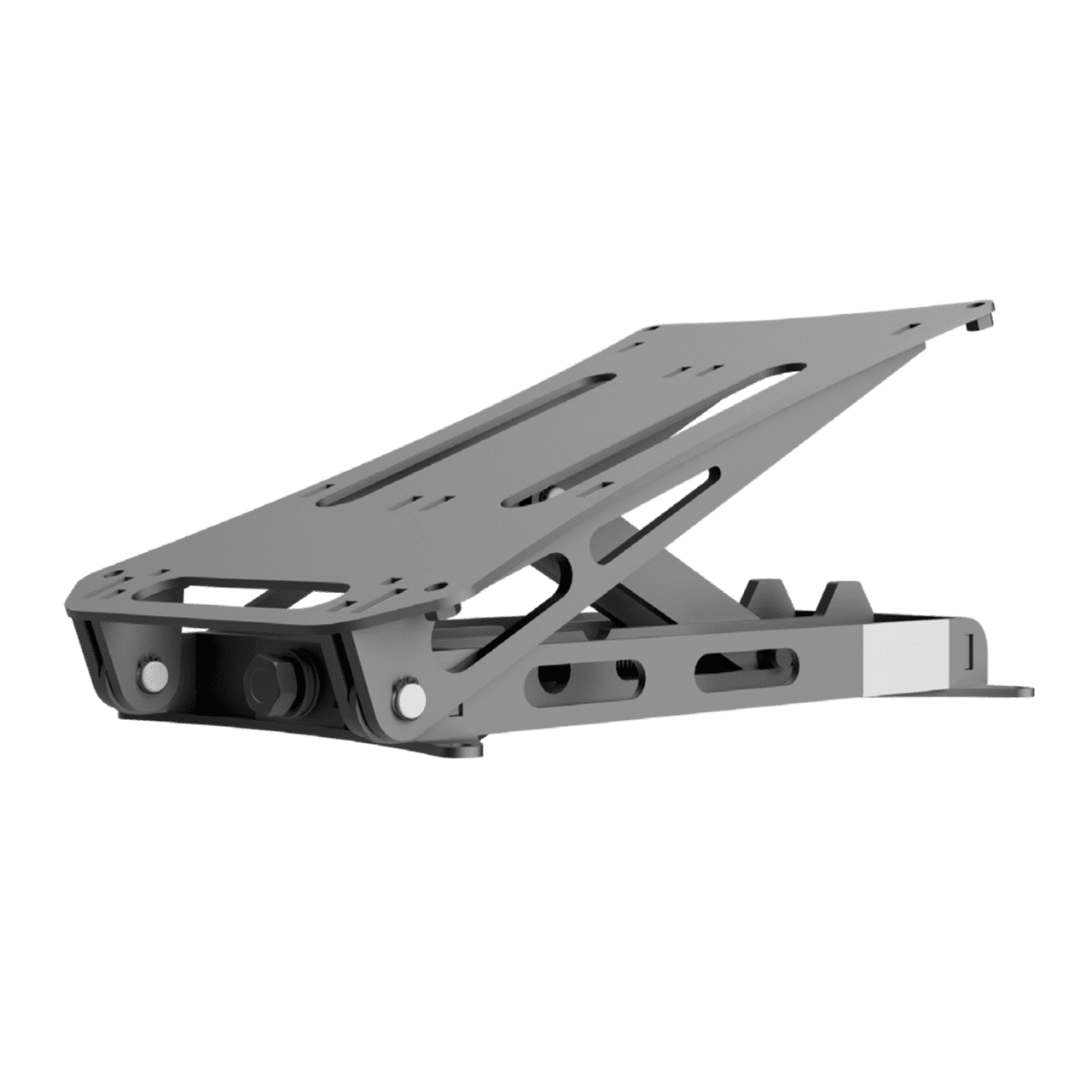

Slope Jig

PART NO. TED-ATT-041-00

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.

Safe Working Load: 800kg / 1,760lbs
Attachment Type: Turntable
Tare Weight: 28kg / 62lbs
Dimensions: (LxWxH)
600 x 335 x 95/450mm
23.6 x 13.2 x 3.8/17.7inch
Part No: TED-ATT-041-00

Used on
All Makes, Caterpillar, Hitachi, Komatsu, Liebherr Ultra Class, Other
