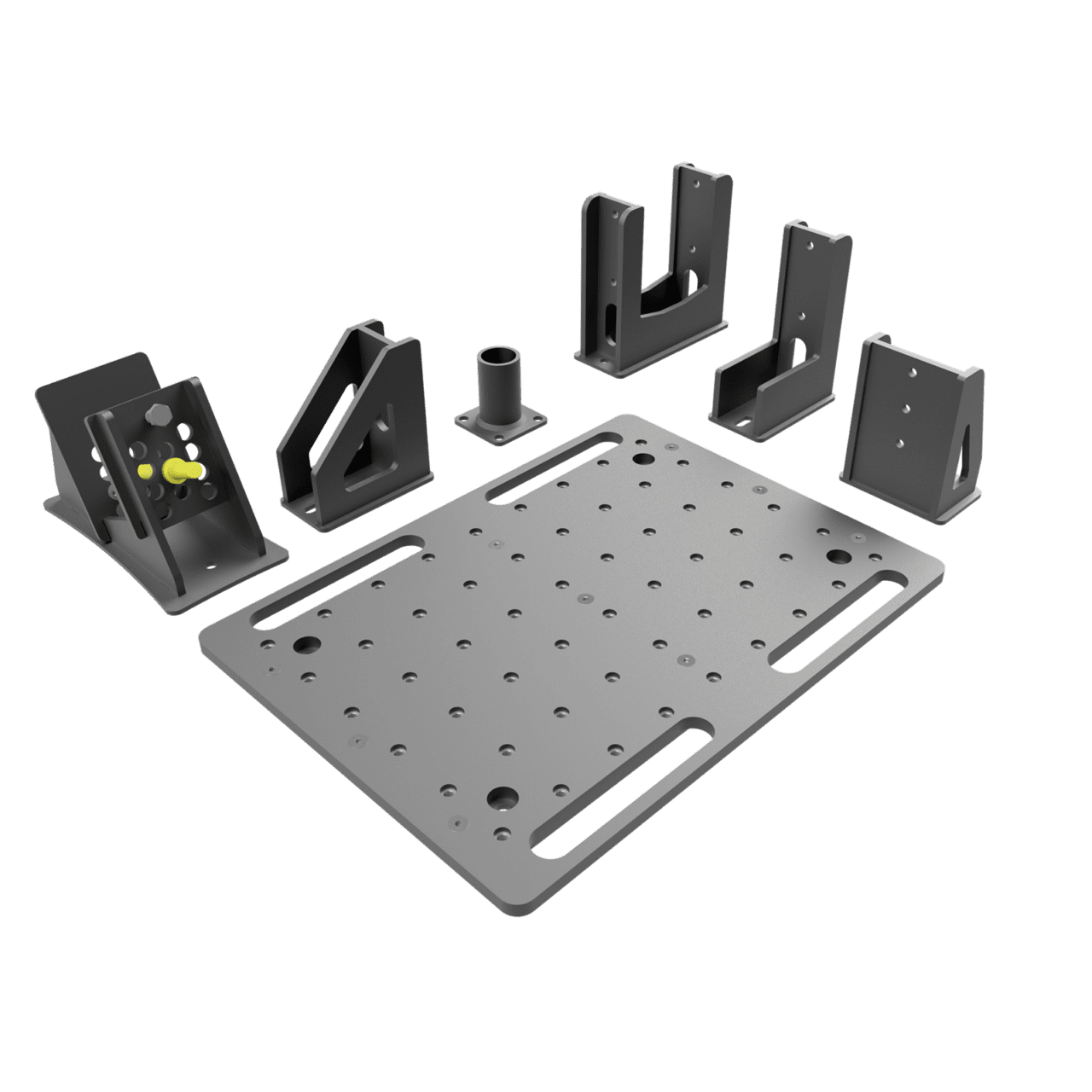

Universal Mounting System

PART NO. TED-ATT-038-00

The Universal Mounting System was designed to allow operators to arrange different types of support frames in a multitude of configurations depending on the task they wish to perform. The Universal Mounting Plate has a series of M12 screw points laid out in a 6×9 grid at 75mm (3inch) spacing, allowing operators to fix the brackets on either orientation. The support frames can be combined with tie down points (e.g. M12 eyebolt) to effectively support and secure all sorts of different shaped loads.

To further enhance its’ versatility, the Universal Mounting Platform can be mounted onto any of the functional modules, Forward or Side
Shift, Low Profile Pivot Table, Extension Block or Slope Jig.

Safe Working Load: 800kg / 1,760lbs
Attachment Type: Turntable
Tare Weight: 37kg / 82lbs
Dimensions: (LxWxH)
700 x 6 x 520mm
27.6 x 0.3 x 20.5inch
Part No: TED-ATT-038-00

Used on
All Makes, Caterpillar, Hitachi, Komatsu, Liebherr Ultra Class
