Counter Balance

PART NO. TED-ATT-018-00
Download Spec Sheet

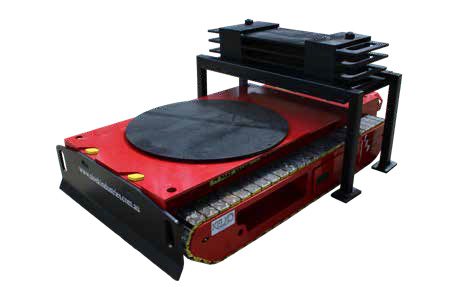

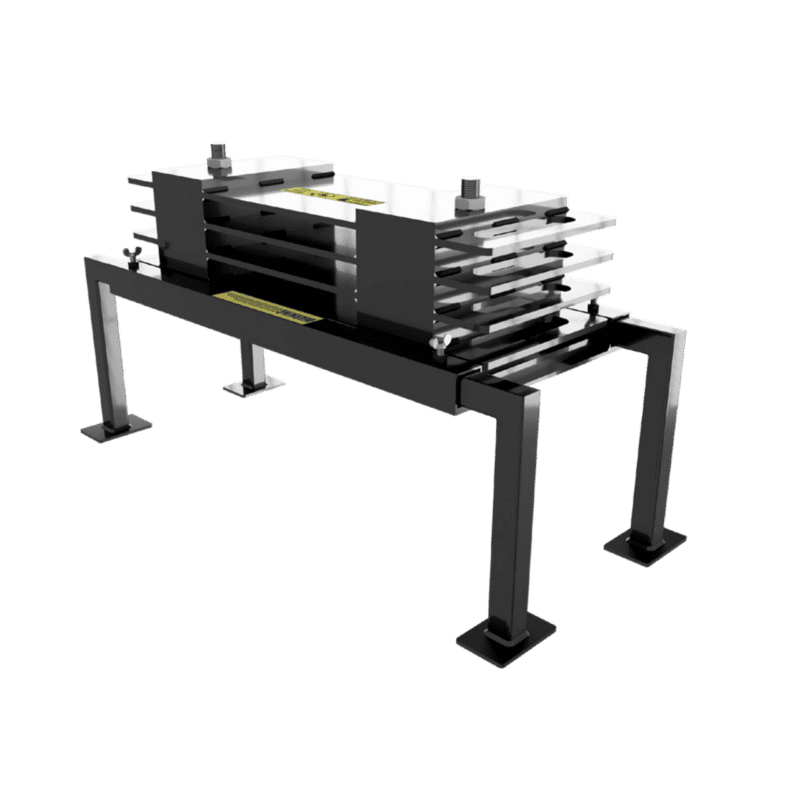

The Counter Balance is designed to be mounted onto the back of the table therefore increasing the lifting capacity of the front attachments. The Counter Balance comes with removable legs allowing for quick mounting and removal.

Safe Working Load: N/A
Attachment Type: Table
Tare Weight: 235kg / 518lbs
Dimensions: (LxWxH)
845 x 400 x 245mm
33.3 x 15.8 x 9.7inch
Part No: TED-ATT-018-00

Used on
All Makes, Caterpillar, Hitachi, Komatsu, Liebherr Ultra Class
Complies with
AS/ISO 22915.1, AS1170.0:2002, AS1170.1:2002, AS2359.1:2015, AS2359.2:2013
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ACC-001

Belly Plate Stand (4 legs)

Simple yet effective, this set of 4 sturdy legs will support the load of a belly plate up to 800kg, making TED available to continue with other jobs. These are perfect for the field where there is no access to forklifts and cranes. Used in the workshop these stands will save time and personnel waiting for a free forklift and operator.
TED-ATT-005-01

Steer Cylinder Cradle

The Steer Cylinder Cradle is designed to support steer cylinders and other cylindrical components during removal and installation. The Steer Cylinder Cradle can be mounted onto any of the adaptor modules for greater alignment of components.
TED-ATT-041-00

Slope Jig

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.
TED-ATT-016-00

Tyre Handler

Our user friendly Tyre Handler is perfect for taking the weight out of changing tyres on service vehicles. Adjustable arms to fit a variety of tyre sizes, and rollers for ease of lining up wheel studs with the tyres make for simple efficient one person tyre changes. Lower manual handling and raise efficiency with the TED Tyre Handler. The Tyre Handler can be lowered and positioned under the new tyre all via TED’s remote control operation to minimise manual handling.
TED-ATT-038-00

Universal Mounting System

The Universal Mounting System was designed to allow operators to arrange different types of support frames in a multitude of configurations depending on the task they wish to perform. The Universal Mounting Plate has a series of M12 screw points laid out in a 6x9 grid at 75mm (3inch) spacing, allowing operators to fix the brackets on either orientation. The support frames can be combined with tie down points (e.g. M12 eyebolt) to effectively support and secure all sorts of different shaped loads.
TED-ACC-003-00

TED’s Home

Keep TED and attachments neatly stored away in TED’s Home. TED’s Home has tie down points and forklift guides to allow users to transport the whole system if required. The attachment storage system allows easy access and secure fixing points for multiple TED attachments. There is a upper shelf where users can store attachments and a hanging frame for turntable mounted attachments.
TED-ATT-021-00

Grader Cutting Edge

The Grader Cutting Edge Tool can be utilised to take the weight of the CET from a variety of graders. The attachment is fitted with two (2) adjustment bolts which can be tightened to assist in stabilising the CET during transit and installation. When used by itself the Grader Cutting Edge has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-023-00

Front Belly Plate Cradle

The Front Belly Plate Cradle is designed to support the Front Belly Plate of D-11 dozers at the right angle for safe removal and transportation. The raised platform provides additional stability for the belly plate by holding it horizontal and allows it to be rotated on the turntable which allows it to be maneuvered between the ripper tine and the tracks.
TED-ATT-014-00

Sump Tray

The Sump Tray is used primarily with either the Low Profile Pivot Table or Slope Jig to alter the table angle and can be used as either a flat tray or with a 45mm (1.8inch) edge around the frame.
