Attachments TED Attachments Corner Cutting Edge Tool
Back to Attachments

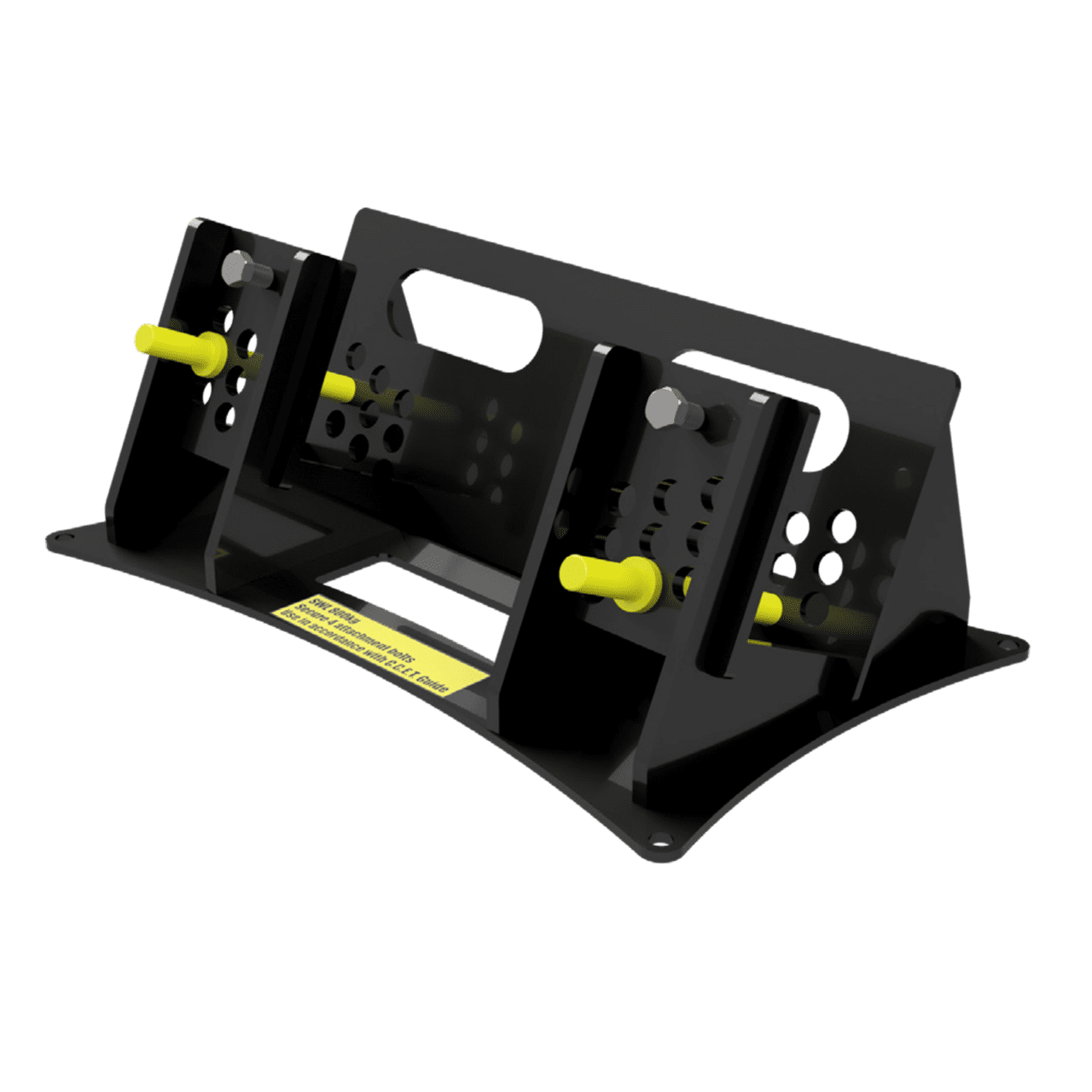

Corner Cutting Edge Tool

PART NO. TED-ATT-024-00
Download Spec Sheet

The CCET is fully adjustable making it perfect for corner CET. Operators can adjust the support pins in any combination of holes to achieve and angle of up to +/- 10 degrees. The CCET also has two retaining bolts which can be used to support different CET thicknesses. The CCET works best when combined with the Low Profile Pivot Table allowing it to be aligned with the angle of the CET being removed/installed.

Safe Working Load: 800kg / 1,760lbs
Attachment Type: Turntable
Tare Weight: 40kg / 89lbs
Dimensions: (LxWxH)
560 x 335 x 210mm
Part No: TED-ATT-024-00

Used on
All Makes, Caterpillar, Hitachi, Komatsu
Complies with
AS1170.0:2002, AS1170.1:2002, AS4100:1998, AS4991:2004
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ATT-012-00

Extension Blocks

Get extra reach selected turntable attachments from the versatile Extension Blocks. Each block is 300mm high and may be stacked a maximum of 2 high with selected attachment secured to the top Extension Block. Extension Blocks are commonly used to reach steering components in conjunction with the Steer Cylinder Cradle or Slope Jig.
TED-ATT-016-00

Tyre Handler

Our user friendly Tyre Handler is perfect for taking the weight out of changing tyres on service vehicles. Adjustable arms to fit a variety of tyre sizes, and rollers for ease of lining up wheel studs with the tyres make for simple efficient one person tyre changes. Lower manual handling and raise efficiency with the TED Tyre Handler. The Tyre Handler can be lowered and positioned under the new tyre all via TED’s remote control operation to minimise manual handling.
TED-ATT-041-00

Slope Jig

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.
TED-ATT-002-01

Dozer Blade

The Dozer Blade comes standard with every TED and is primarily used to clear a level working area allowing for a stabler and therefore safer operation. When the blade is fitted in the bottom mounting port it will just touch the ground when TED is fully compressed, perfect pushing debris off concrete floors.
TED-ATT-010-00

Track Roller Carrier

The Track Roller Carrier’s intended purpose is to aid in the removal and replacement of track rollers, lowering the manual handling component and removing the need for placing hands in harm’s way. When used by itself the Track Roller Carrier has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-043-00

Steering Arm

The Steering Arm Tool has been specifically designed to assist in the removal and installation of the Komatsu 930E Steering Arm. Due to the weight of the attachment, it has been designed to be forkliftable even when carrying a steering arm.
TED-ACC-004-00

Pit Rescue Trailer

Nivek’s Pit Rescue Trailer is built in-house and is made handle the toughest of haul roads and meet or exceed mine site requirements. Ideal for contractors working on multiple sites. It is the perfect way to transport TED from workshop to pit, or site to site. With a 2T rated axle, Landcruiser 5 stud tyres (spare included) and a frame constructed from 50x50x3mm Square Hollow Section and 3mm mild steel plate for the floor and walls, the Nivek Pit Rescue Trailer is extremely durable. The frame has been powder coated throughout to ensure it is protected from the elements and will remain in good condition for many years.
TED-ATT-003-01

Stand Locating Tool

Manoeuvre heavy axle stands under machinery with remote control ease. The Stand Locating Tool helps to protect against needless back and shoulder strains.
TED-ATT-044-00

Brake/Steer Pump

The Brake/Steer Pump Tool can be manually pivoted +/- 5 degrees to allow for spline alignment and incorporates an interchangeable pump mounting weldment allowing operators to use the tool for various pumps.
