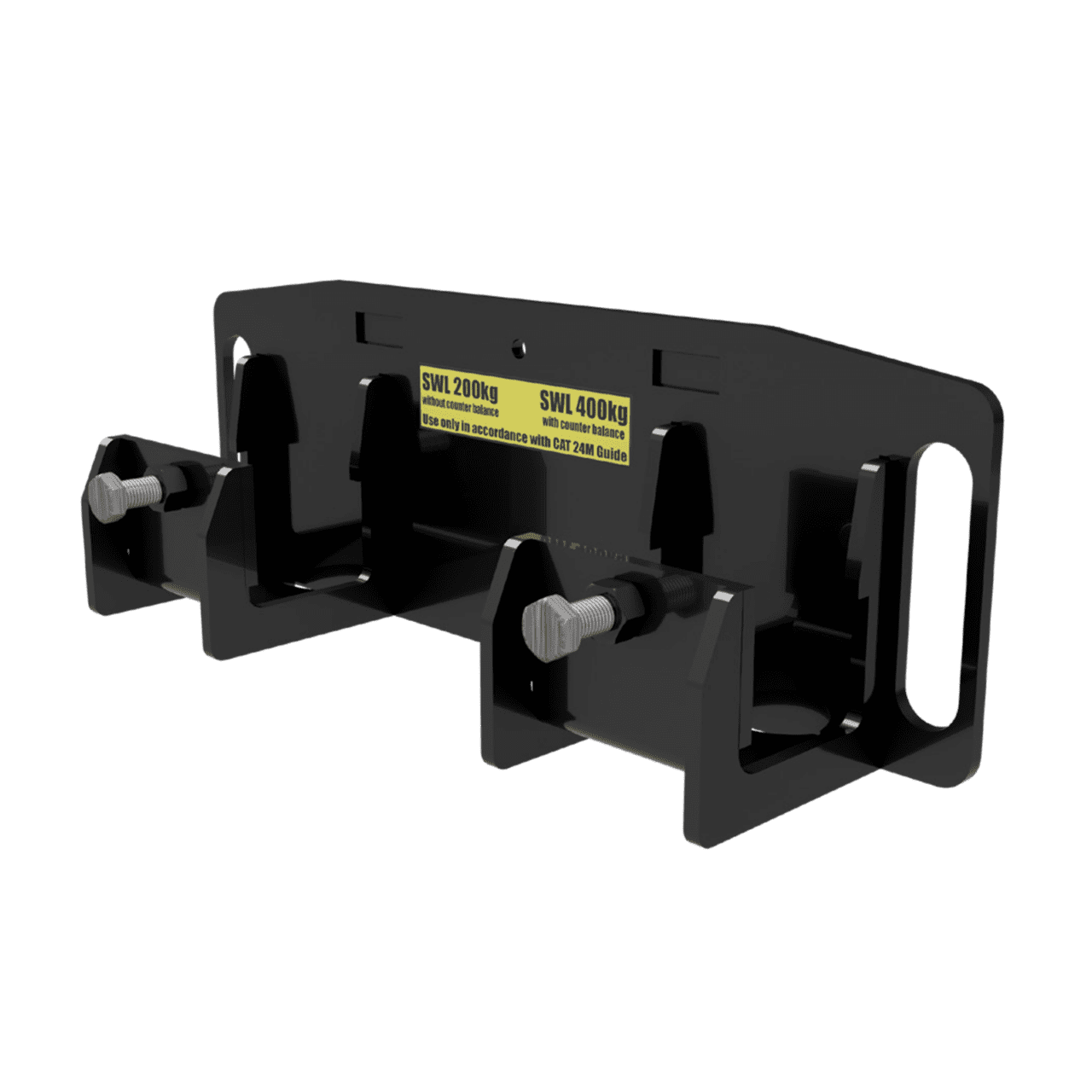

Grader Cutting Edge

PART NO. TED-ATT-021-00
Download Spec Sheet

The Grader Cutting Edge Tool can be utilised to take the weight of the CET from a variety of graders. The attachment is fitted with two (2) adjustment bolts which can be tightened to assist in stabilising the CET during transit and installation. When used by itself the Grader Cutting Edge has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).

Safe Working Load: 400kg / 880lbs
Attachment Type: Front
Tare Weight: 21kg / 47lbs
Dimensions: (LxWxH)
650 x 150 x 240mm
25.6 x 5.9 x 9.4inch
Part No: TED-ATT-021-00

Used on
All Makes, Caterpillar, Hitachi, Komatsu
Complies with
AS/ISO 22915.1, AS1170.0:2002, AS1170.1:2002, AS2359.1:2015, AS2359.2:2013, AS4100:1998, AS4991:2004
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ATT-025-00

Strut Spindle Cap Tool

Strut Spindle Caps of various sizes can be safely removed and replaced using the SSCT. The three (3) threaded bolts offer width and angle adjustment to accommodate varying strut spindle caps. The SSCT is designed to take the weight of the strut spindle cap and removal tool only. The strut itself must be supported as per manufacturers specifications.
TED-ATT-038-00

Universal Mounting System

The Universal Mounting System was designed to allow operators to arrange different types of support frames in a multitude of configurations depending on the task they wish to perform. The Universal Mounting Plate has a series of M12 screw points laid out in a 6x9 grid at 75mm (3inch) spacing, allowing operators to fix the brackets on either orientation. The support frames can be combined with tie down points (e.g. M12 eyebolt) to effectively support and secure all sorts of different shaped loads.
TED-ATT-036-00

Transmission Pump Tool

The Transmission Pump Tool can be rotated manually and incorporates an interchangeable mounting weldment allowing operators to use the tool for various pumps.
TED-ATT-035-00

Side Shift

The Side Shift module attaches to the turntable and allows operators to mount various other component specific attachments onto it. The module can be manually adjusted +/- 50mm (2inch) sideways allowing operators greater control when lining up components during installation.
TED-ATT-028-00

Sound Suppression Tray

The Sound Suppression Tray has been specifically designed to assist in the removal and installation of sound suppression panels.
TED-ATT-041-00

Slope Jig

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.
TED-ATT-032-00

Forward Shift

The Forward Shift module attaches to the turntable and allows operators to mount various other component specific attachments onto it. The module can be manually adjusted +/- 40mm (1.6inch) forwards or rearwards allowing operators greater control when lining up components during installation.
TED-ATT-005-01

Steer Cylinder Cradle

The Steer Cylinder Cradle is designed to support steer cylinders and other cylindrical components during removal and installation. The Steer Cylinder Cradle can be mounted onto any of the adaptor modules for greater alignment of components.
TED-ATT-010-00

Track Roller Carrier

The Track Roller Carrier’s intended purpose is to aid in the removal and replacement of track rollers, lowering the manual handling component and removing the need for placing hands in harm’s way. When used by itself the Track Roller Carrier has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
