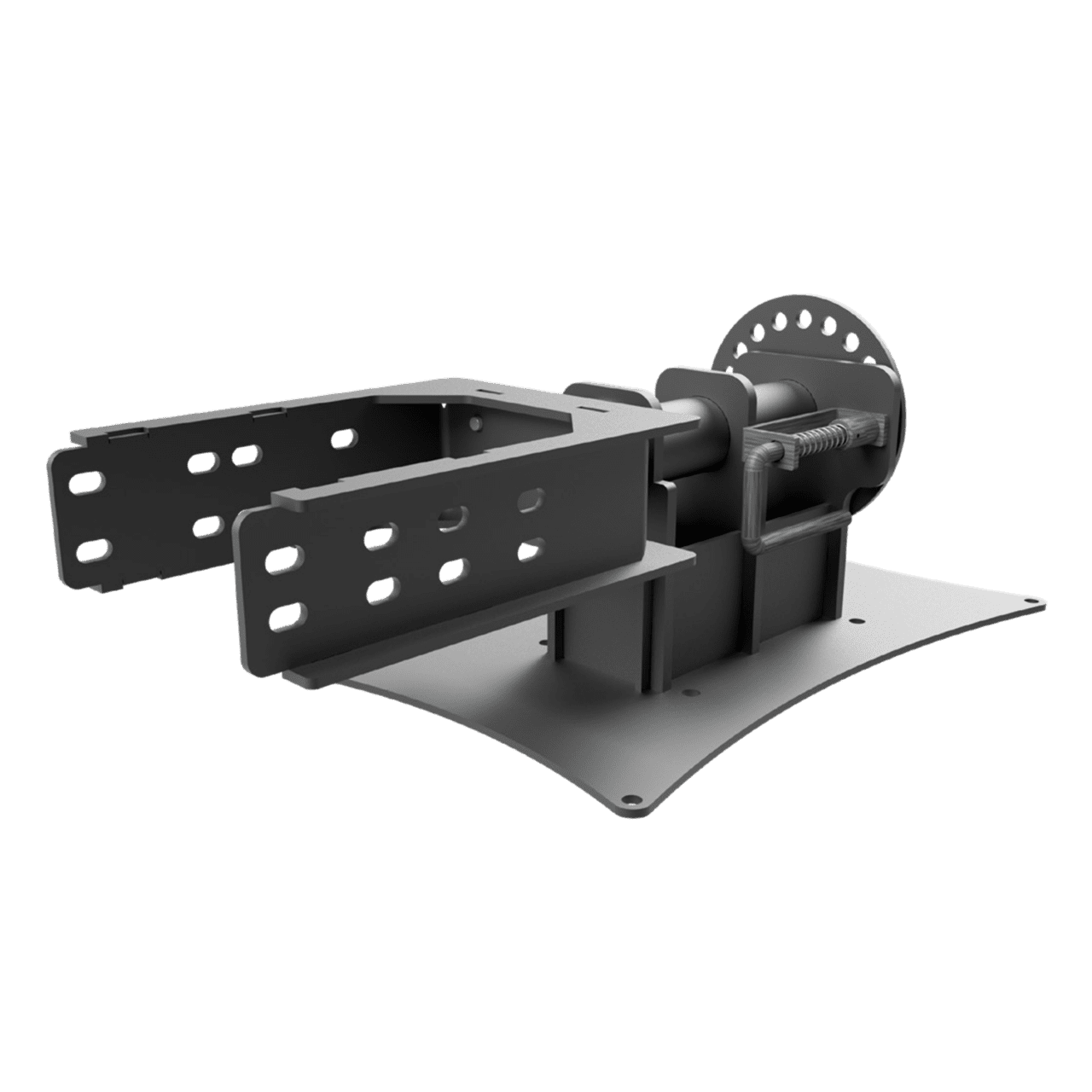

Transmission Pump Tool

PART NO. TED-ATT-036-00

The Transmission Pump Tool can be rotated manually and incorporates an interchangeable mounting weldment allowing operators to use the tool for various pumps.

Safe Working Load: 200kg / 440lbs
Attachment Type: Turntable
Tare Weight: 26kg / 58lbs
Dimensions: (LxWxH)
770 x 340 x 276mm
30.4 x 13.4 x 10.9inch
Part No: TED-ATT-036-00

Used on
Caterpillar
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ATT-033-00

Elevated Table

The Elevated Table provides operators with an additional 600mm (23.6inch) of reach whilst not compromising stability. The Elevated Table has its own built in turntable which other attachments can be bolted onto.
TED-ATT-041-00

Slope Jig

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.
TED-ATT-024-00

Corner Cutting Edge Tool

The CCET is fully adjustable making it perfect for corner CET. Operators can adjust the support pins in any combination of holes to achieve and angle of up to +/- 10 degrees. The CCET also has two retaining bolts which can be used to support different CET thicknesses. The CCET works best when combined with the Low Profile Pivot Table allowing it to be aligned with the angle of the CET being removed/installed.
TED-ATT-044-00

Brake/Steer Pump

The Brake/Steer Pump Tool can be manually pivoted +/- 5 degrees to allow for spline alignment and incorporates an interchangeable pump mounting weldment allowing operators to use the tool for various pumps.
TED-ATT-021-00

Grader Cutting Edge

The Grader Cutting Edge Tool can be utilised to take the weight of the CET from a variety of graders. The attachment is fitted with two (2) adjustment bolts which can be tightened to assist in stabilising the CET during transit and installation. When used by itself the Grader Cutting Edge has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ACC-003-00

TED’s Home

Keep TED and attachments neatly stored away in TED’s Home. TED’s Home has tie down points and forklift guides to allow users to transport the whole system if required. The attachment storage system allows easy access and secure fixing points for multiple TED attachments. There is a upper shelf where users can store attachments and a hanging frame for turntable mounted attachments.
TED-ATT-010-00

Track Roller Carrier

The Track Roller Carrier’s intended purpose is to aid in the removal and replacement of track rollers, lowering the manual handling component and removing the need for placing hands in harm’s way. When used by itself the Track Roller Carrier has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-002-01

Dozer Blade

The Dozer Blade comes standard with every TED and is primarily used to clear a level working area allowing for a stabler and therefore safer operation. When the blade is fitted in the bottom mounting port it will just touch the ground when TED is fully compressed, perfect pushing debris off concrete floors.
TED-ATT-020-00

Double Sided Cutting Edge Tool

The Double Sided Cutting Edge Tool is designed to aid in routine CET maintenance, the Double Sided Cutting Edge Tool allows operators to remove, clean, turned and reinstall the CET. The Double Sided Cutting Edge Tool can be mounted onto any of the movement modules for greater alignment of components.
