Attachments TED Attachments Fork Tynes
Fork Tynes
Fork Tynes - Image 2
Fork Tynes - Image 3
Back to Attachments

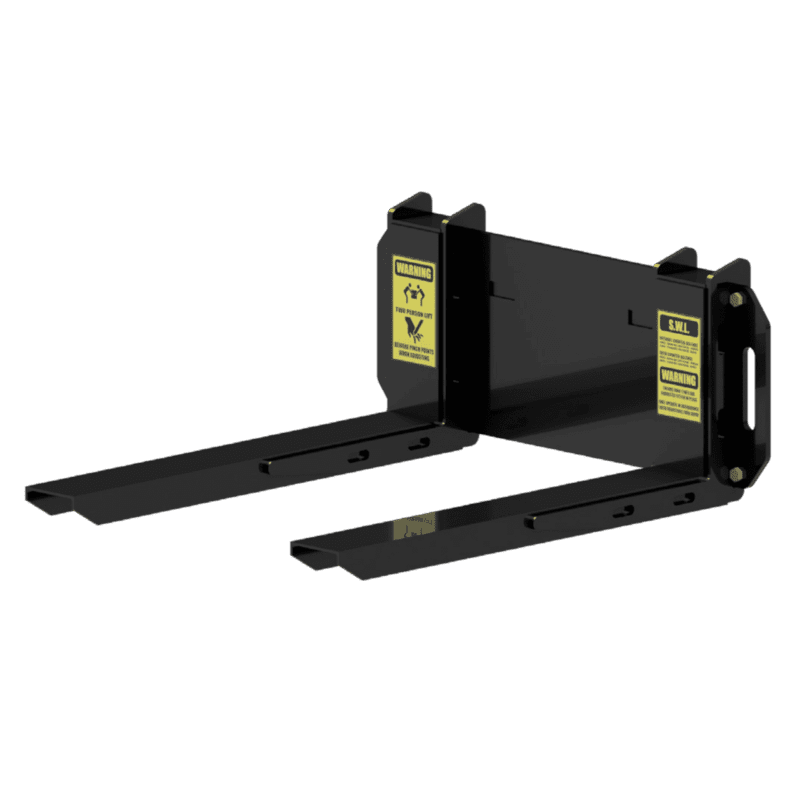

Fork Tynes

PART NO. TED-ATT-022-00
Download Spec Sheet

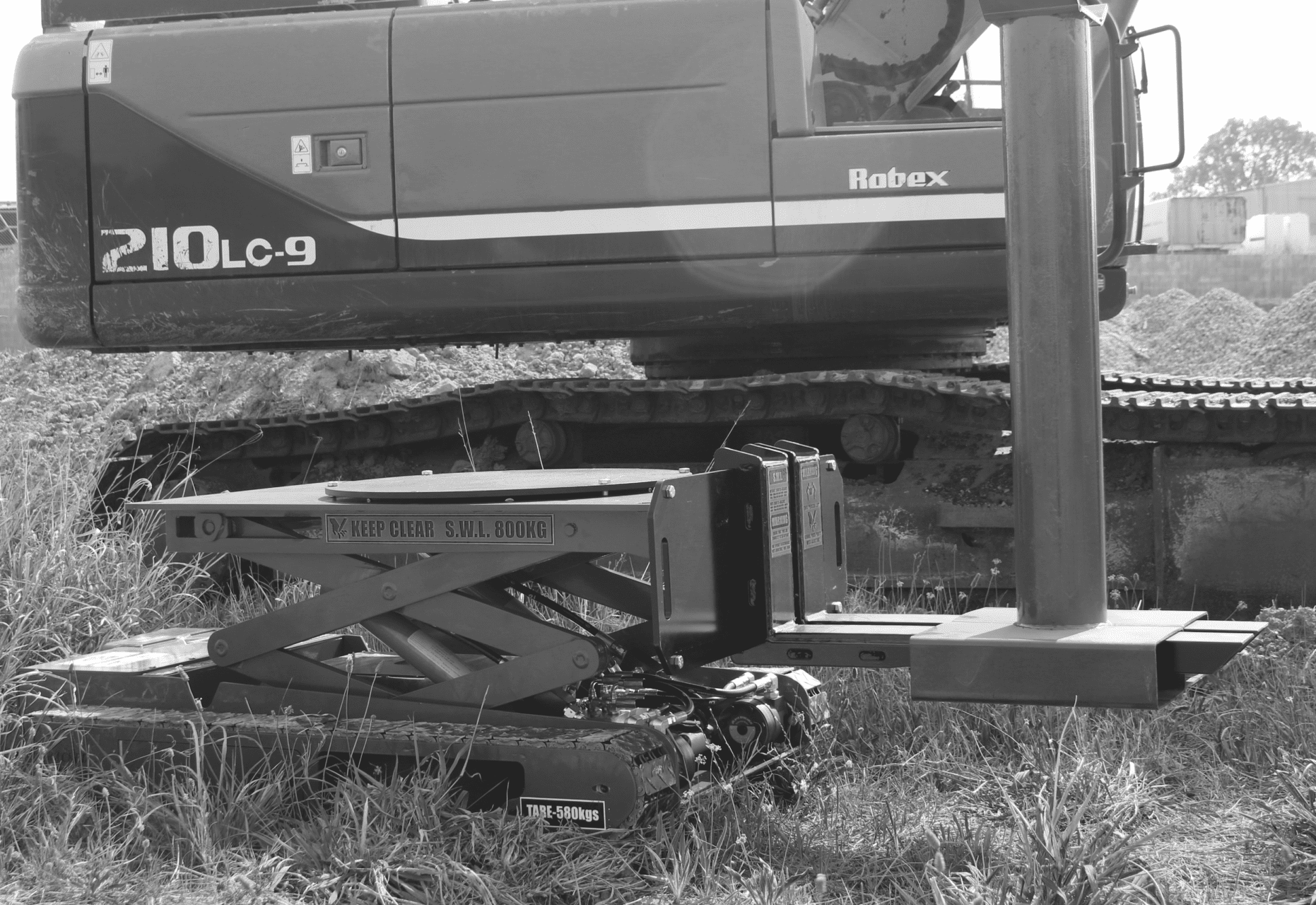

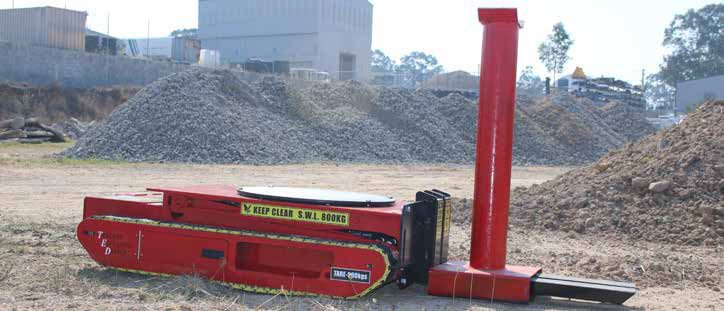

The Fork Tynes attach to the front of TED, can carry 200kg without the additional Counter Balance, or 400kg with the Counter Balance secured. Move heavy equipment and components around in tight low spaces with ease using TED’s width adjustable Fork Tynes.

Safe Working Load: 400kg / 880lbs
Attachment Type: Front
Tare Weight: 47kg / 104lbs
Dimensions: (LxWxH)
845 x 800 x 360mm
33.3 x 31.5 x 14.2inch
Part No: TED-ATT-022-00

Used on
All Makes, Caterpillar, Hitachi, Komatsu, Liebherr Ultra Class
Complies with
AS1170.0:2002, AS1170.1:2002, AS2359.1:2015, AS2359.2:2013, AS4100:1998, AS4991:2004
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ATT-024-00
Corner Cutting Edge Tool

Corner Cutting Edge Tool

The CCET is fully adjustable making it perfect for corner CET. Operators can adjust the support pins in any combination of holes to achieve and angle of up to +/- 10 degrees. The CCET also has two retaining bolts which can be used to support different CET thicknesses. The CCET works best when combined with the Low Profile Pivot Table allowing it to be aligned with the angle of the CET being removed/installed.
TED-ACC-001
Belly Plate Stand (4 legs)

Belly Plate Stand (4 legs)

Simple yet effective, this set of 4 sturdy legs will support the load of a belly plate up to 800kg, making TED available to continue with other jobs. These are perfect for the field where there is no access to forklifts and cranes. Used in the workshop these stands will save time and personnel waiting for a free forklift and operator.
TED-ATT-032-00
Forward Shift

Forward Shift

The Forward Shift module attaches to the turntable and allows operators to mount various other component specific attachments onto it. The module can be manually adjusted +/- 40mm (1.6inch) forwards or rearwards allowing operators greater control when lining up components during installation.
TED-ATT-002-01
Dozer Blade

Dozer Blade

The Dozer Blade comes standard with every TED and is primarily used to clear a level working area allowing for a stabler and therefore safer operation. When the blade is fitted in the bottom mounting port it will just touch the ground when TED is fully compressed, perfect pushing debris off concrete floors.
TED-ATT-030-00
Low Profile Pivot Table

Low Profile Pivot Table

The LPPT is the perfect for supporting components on an angle and works in conjunction with other turntable mounting attachments such as the Sump Tray and Cutting Edge Attachments. The LPPT is capable of fine adjustment +/- 15 degrees and provides fitters with superior flexibility and control.
TED-ATT-033-00
Elevated Table

Elevated Table

The Elevated Table provides operators with an additional 600mm (23.6inch) of reach whilst not compromising stability. The Elevated Table has its own built in turntable which other attachments can be bolted onto.
TED-ATT-016-00
Tyre Handler

Tyre Handler

Our user friendly Tyre Handler is perfect for taking the weight out of changing tyres on service vehicles. Adjustable arms to fit a variety of tyre sizes, and rollers for ease of lining up wheel studs with the tyres make for simple efficient one person tyre changes. Lower manual handling and raise efficiency with the TED Tyre Handler. The Tyre Handler can be lowered and positioned under the new tyre all via TED’s remote control operation to minimise manual handling.
TED-ATT-014-00
Sump Tray

Sump Tray

The Sump Tray is used primarily with either the Low Profile Pivot Table or Slope Jig to alter the table angle and can be used as either a flat tray or with a 45mm (1.8inch) edge around the frame.
TED-ATT-041-00
Slope Jig

Slope Jig

The Slope Jig was designed to primarily be used with the Universal Mounting Plate to allow operators to undertake tasks where the intended job is at an angle. Component specific attachments can also be bolted directly onto the Slope Jig. The Slope Jig can support loads of up to 800kg (1,760lbs) and can be manually adjusted to achieve angles from 0 to 45 degrees.
