Steering Arm
Back to Attachments

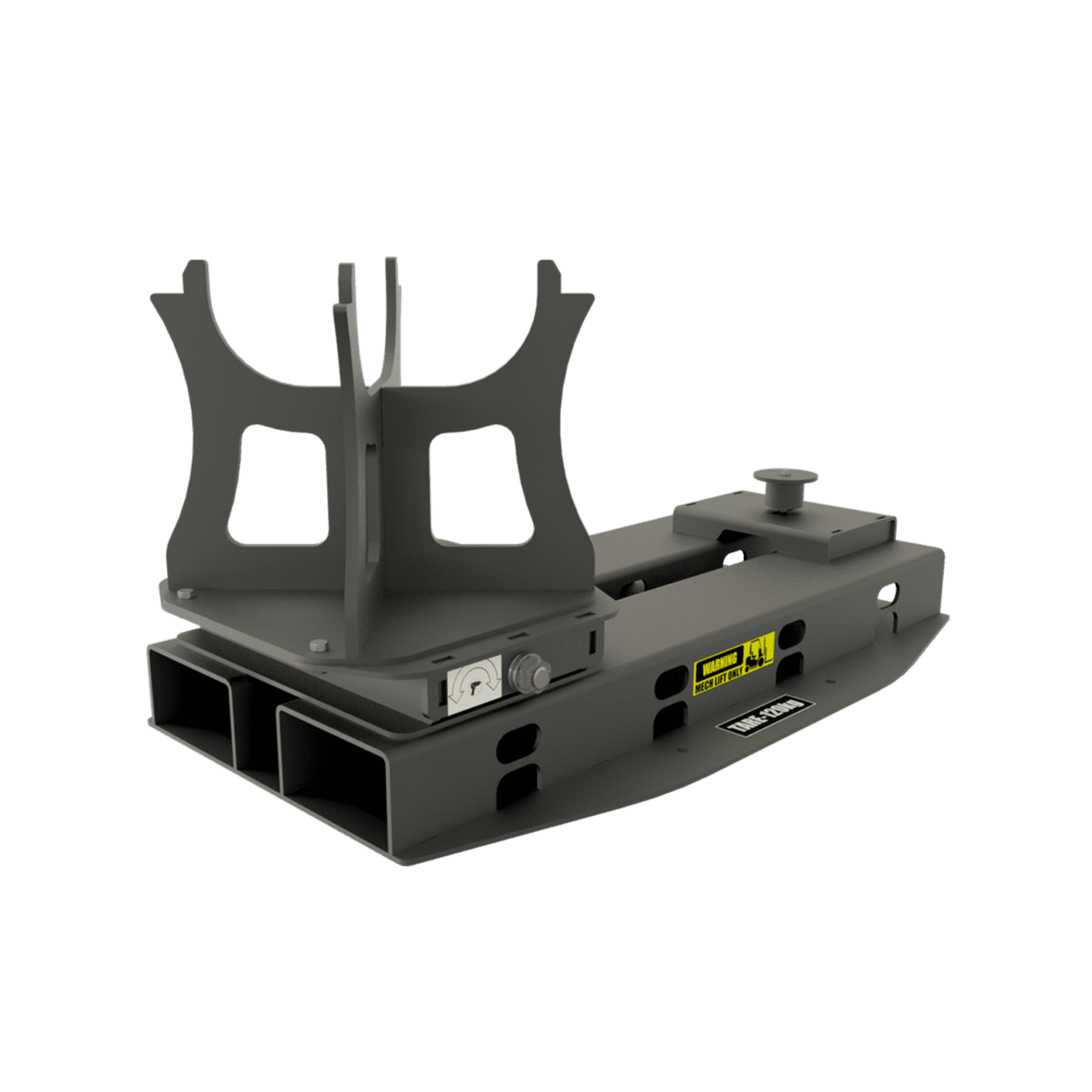

Steering Arm

PART NO. TED-ATT-043-00

The Steering Arm Tool has been specifically designed to assist in the removal and installation of the Komatsu & CAT Steering Arms. Due to the weight of the attachment, it has been designed to be forklift-able even when carrying a steering arm.

The Steering Arm is also compatible with:

  • Komatsu 83OE Part Number: TED-ATT-043-007-00
  • Komatsu 960E Part Number: TED-ATT-043-006-00
  • Komatsu 930E Part Number: TED-ATT-043-004-00
  • CAT 793F Part Number: TED-ATT-043-008-00

Safe Working Load: 800kg / 1,760lbs
Attachment Type: Turntable
Tare Weight: 120kg / 190lbs
Dimensions: (LxWxH)
1085 x 650 x 551mm
42.8 x 25.6 x 21.7inch
Part No: TED-ATT-043-00

Used on
Caterpillar, Komatsu
