Tracked Elevating Device - TED

Download Spec Sheet

The safest and most productive way to remove/replace belly guards and other heavy components

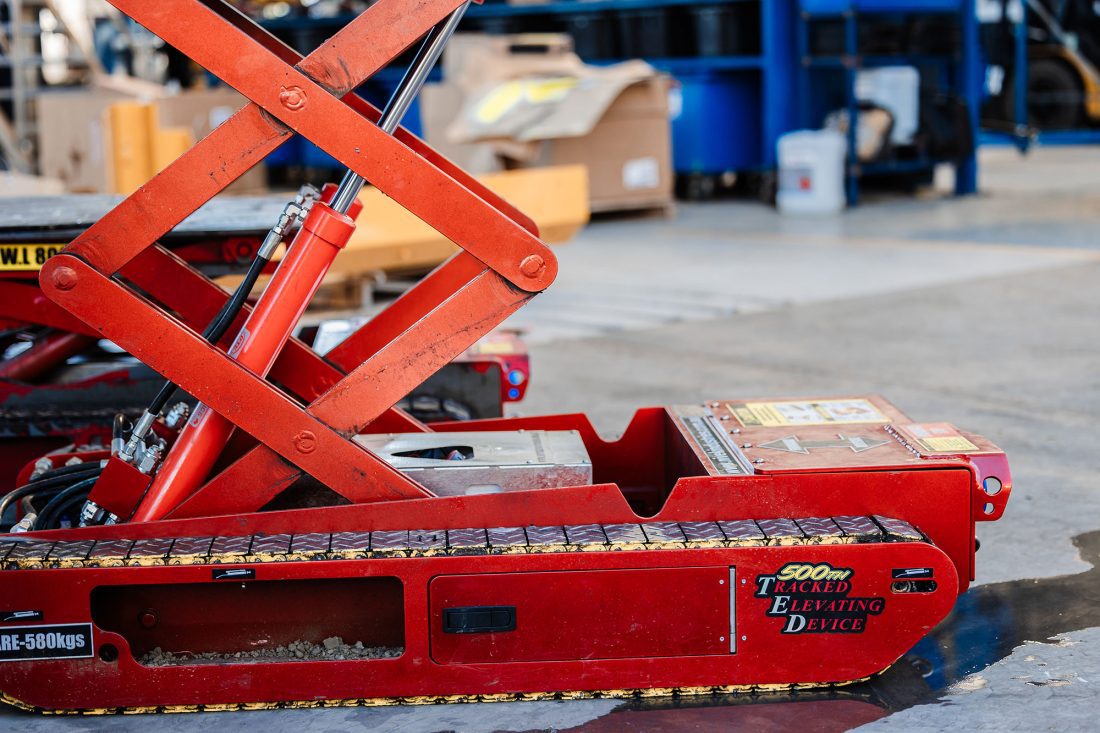

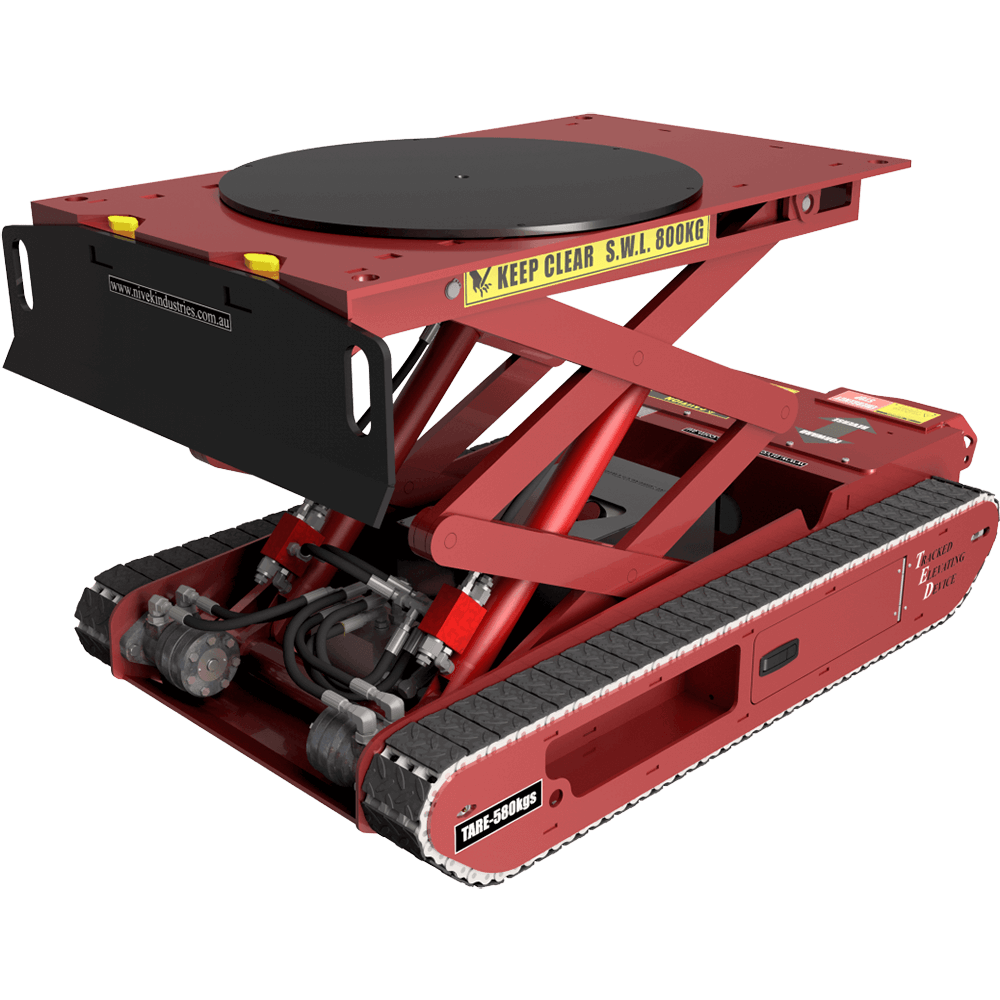

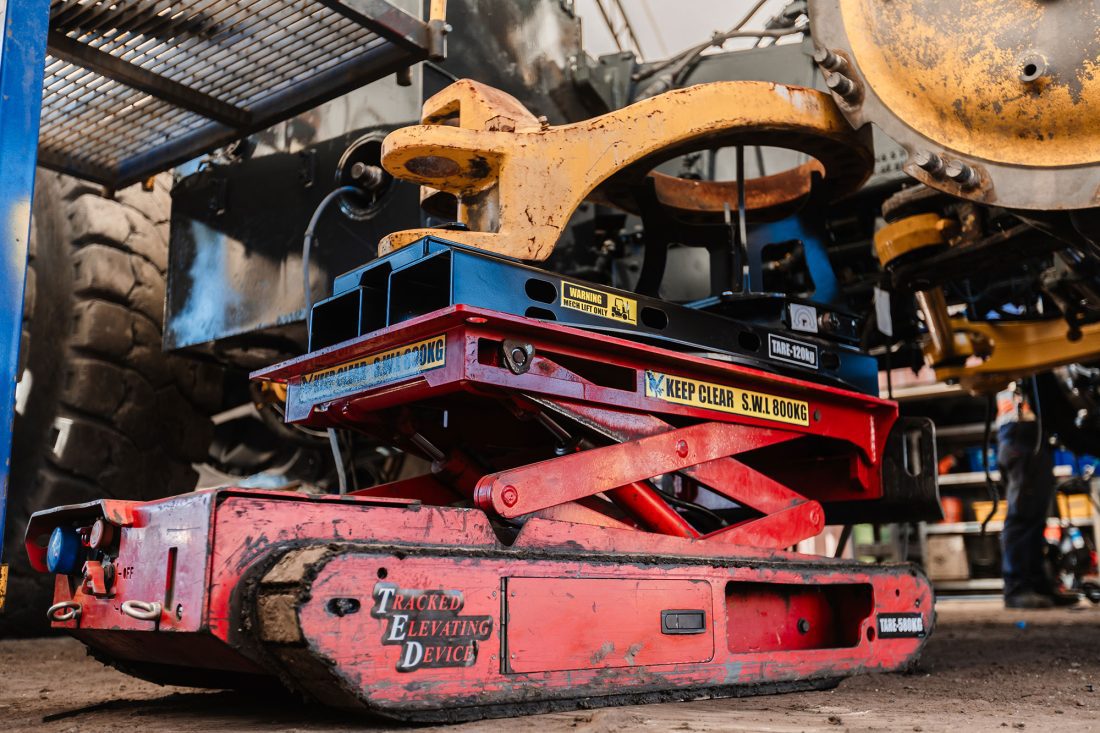

The Tracked Elevating Device (TED) is an essential piece of safety gear for anyone working on dozers, graders, dump trucks and other mining and earth-moving machinery.

Watch the Video
TED Product Video

Hazard Reduction

TED utilises remote-control operation which removes personnel from suspended load hazards and safeguards against potentially fatal crush injuries.

All Terrain

TED can be deployed to the pit quickly and easily and can meet the demands of the toughests sites with the addition of a purpose built Pit Rescue Trailer.

Any Situation

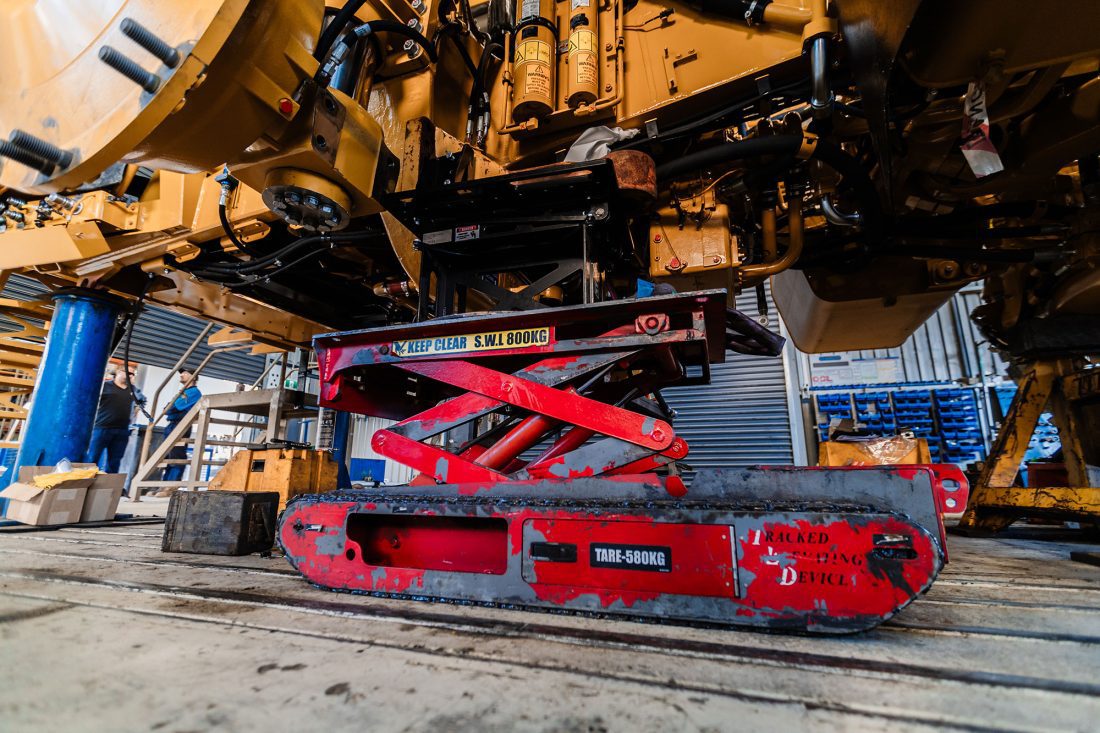

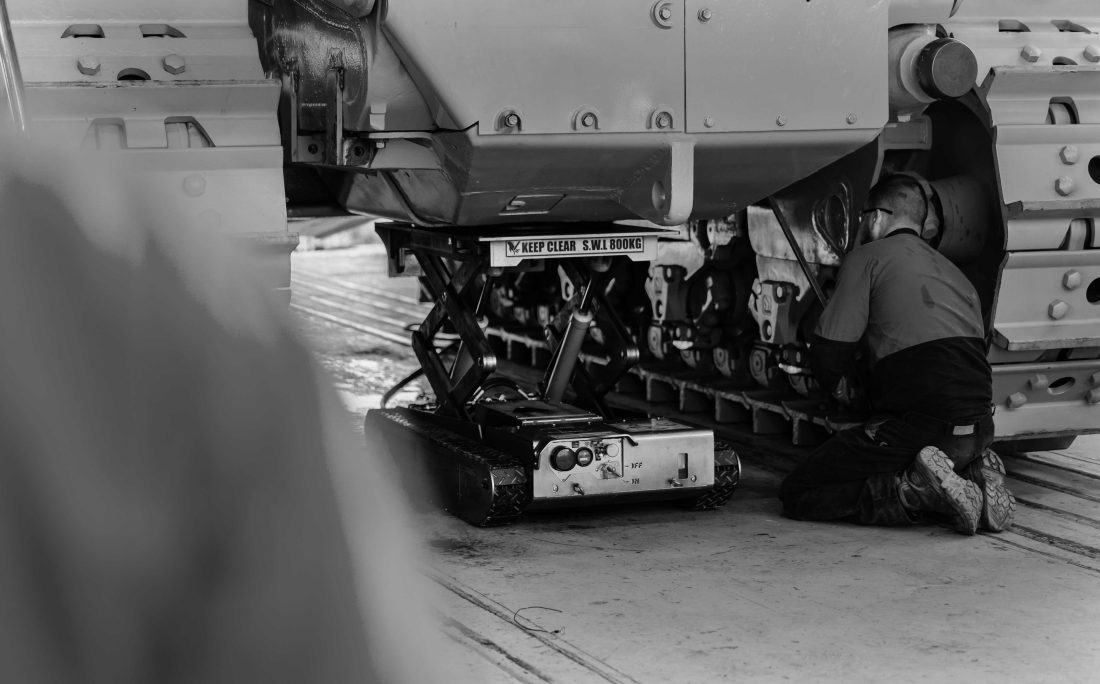

TED can be used in very tight spaces under machinery to remove and replace belly guards and other heavy components.

Productivity

TED allows for streamlined field maintenance which increases productivity and reduces the need for personnel to move loads around and between sites.

Innovative Attachments

TED has an ever increasing range of practical attachments designed to increase the safety and efficiency of countless workplace operations.

Technical Specifications

Length 1374mm
Width 778mm
Height 315-1172mm
Ground Clearance 60mm
Tare Weight 580kg
Safe Working Load 800kg
Ground Speed Slow 0.7 km/hr
Fast 1.1 km/hr
Motor Type DC 12 Volt, 2kW
Remote Frequency 32 Channels ranging from 433.000MHz to 434.550MHz
Part Number TED-ASY-000-00
Specification Sheet Download PDF

Unparalleled In Safety

  • Designed to protect against manual handling related injuries
  • Load lock valves
  • Strobe and alarm for visual and auditory warning when in use
  • Dual emergency stop features on both TED and remote control
  • Deadman switch on the remote
  • Dual pole lockable battery isolator
Safe. Efficient. Reliable. Our Products

Key Features

  • Remote-controlled operation
  • Adaptable to site conditions
  • Numerous safety features
  • Versatile attachment range
  • Ongoing maintenance and support
  • Robust product warranty
View Our Attachment Range

Attachment Range

TED-ATT-030-00
Low Profile Pivot Table

Low Profile Pivot Table

The LPPT is the perfect for supporting components on an angle and works in conjunction with other turntable mounting attachments such as the Sump Tray and Cutting Edge Attachments. The LPPT is capable of fine adjustment +/- 15 degrees and provides fitters with superior flexibility and control.
TED-ATT-006-01

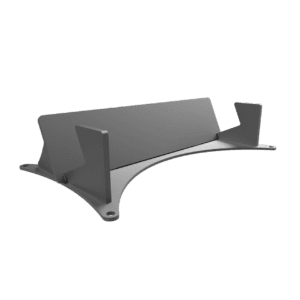

Cutting Edge Tool

Cutting Edge Tool

The Cutting Edge Tool is used to lower manual handling on CET maintenance. Rest the CET due for removal in the Cutting Edge Tool and lift or lower into place via TED’s remote control operation. The Cutting Edge Tool can be mounted onto any of the adaptor modules for greater alignment of components.
TED-ATT-022-00

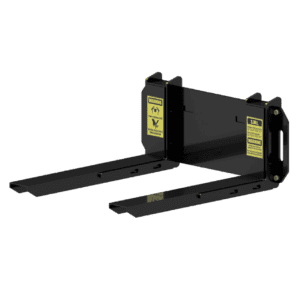

Fork Tynes

Fork Tynes

The Fork Tynes attach to the front of TED, can carry 200kg without the additional Counter Balance, or 400kg with the Counter Balance secured. Move heavy equipment and components around in tight low spaces with ease using TED’s width adjustable Fork Tynes.
TED-ATT-023-00

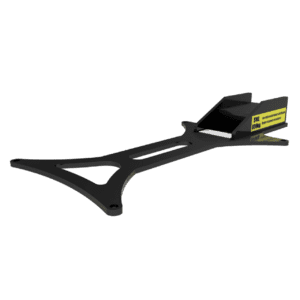

Front Belly Plate Cradle

Front Belly Plate Cradle

The Front Belly Plate Cradle is designed to support the Front Belly Plate of D-11 dozers at the right angle for safe removal and transportation. The raised platform provides additional stability for the belly plate by holding it horizontal and allows it to be rotated on the turntable which allows it to be maneuvered between the ripper tine and the tracks.
TED-ATT-021-00

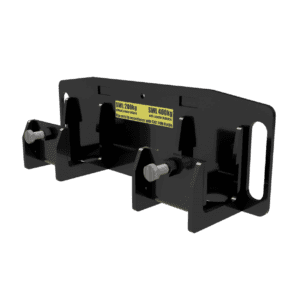

Grader Cutting Edge

Grader Cutting Edge

The Grader Cutting Edge Tool can be utilised to take the weight of the CET from a variety of graders. The attachment is fitted with two (2) adjustment bolts which can be tightened to assist in stabilising the CET during transit and installation. When used by itself the Grader Cutting Edge has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-031-00
Front Jib Attachment

Front Jib Attachment

Manoeuvre awkward objects from above with the all purpose Front Jib Attachment. Three different extension lengths add to the versatility of the Front Jib Attachment.
View Our Attachment Range

Maintenance & Support

Designed by a fitter, TED has been built to last and for ease of maintenance. Servicing your own TED will not void warranty. Regular servicing can be performed by your own fitters, by Nivek Industries or our Service Agents.

For a full service schedule and product support please refer to our support page. Support
