Attachments TED Attachments Front Jib Attachment
Front Jib Attachment
Front Jib Attachment - Image 2
Back to Attachments

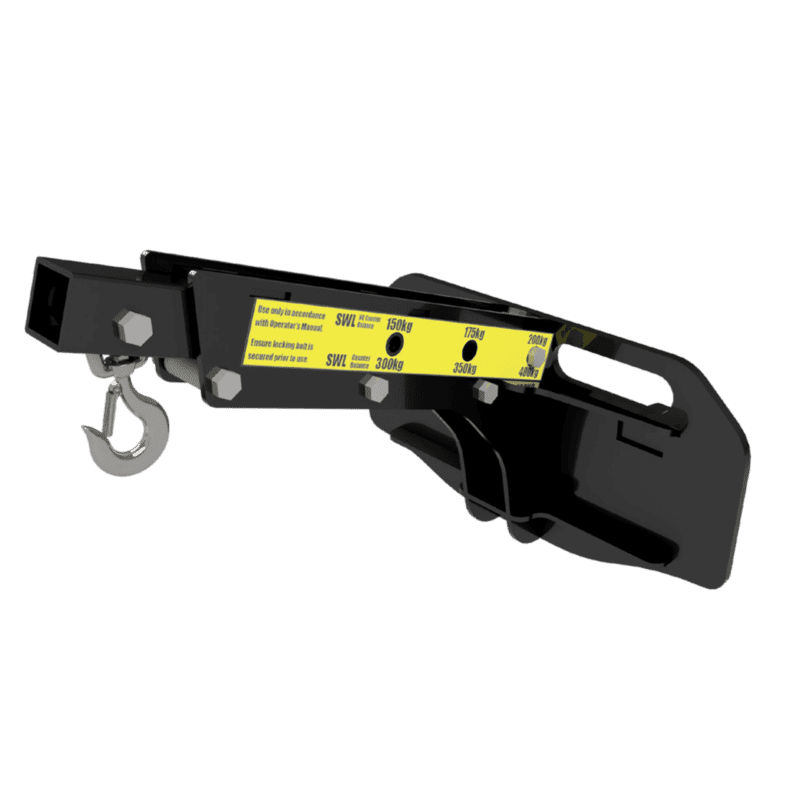

Front Jib Attachment

PART NO. TED-ATT-031-00

Manoeuvre awkward objects from above with the all purpose Front Jib Attachment. Three different extension lengths add to the versatility of the Front Jib Attachment.

Tare Weight: 21kg

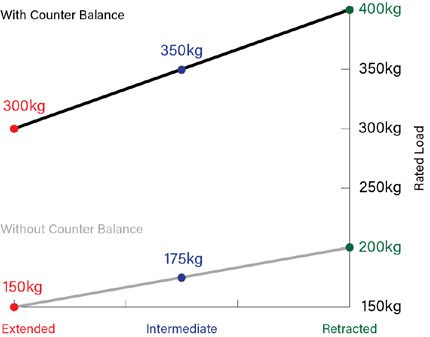

Safe Working Load: 150-400kg
Attachment Type: Front
Dimensions: (LxWxH)
580-780 x 500 x 250mm
22.9-30.1 x 19.7 x 9.9inch
Part No: TED-ATT-031-00

Used on
All Makes, Caterpillar, Hitachi, Komatsu, Liebherr Ultra Class
Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

TED-ATT-003-01

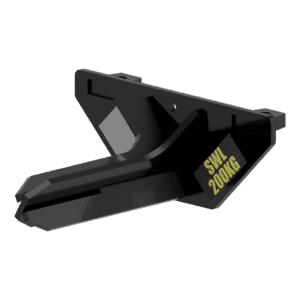

Stand Locating Tool

Stand Locating Tool

Manoeuvre heavy axle stands under machinery with remote control ease. The Stand Locating Tool helps to protect against needless back and shoulder strains.
TED-ATT-028-00
Sound Suppression Tray

Sound Suppression Tray

The Sound Suppression Tray has been specifically designed to assist in the removal and installation of sound suppression panels.
TED-ATT-014-00

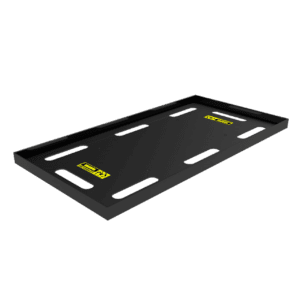

Sump Tray

Sump Tray

The Sump Tray is used primarily with either the Low Profile Pivot Table or Slope Jig to alter the table angle and can be used as either a flat tray or with a 45mm (1.8inch) edge around the frame.
TED-ATT-044-00

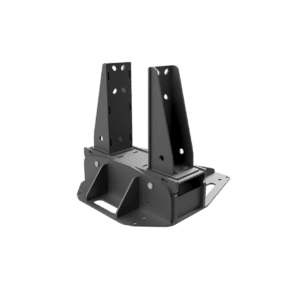

Brake/Steer Pump

Brake/Steer Pump

The Brake/Steer Pump Tool can be manually pivoted +/- 5 degrees to allow for spline alignment and incorporates an interchangeable pump mounting weldment allowing operators to use the tool for various pumps.
TED-ATT-035-00

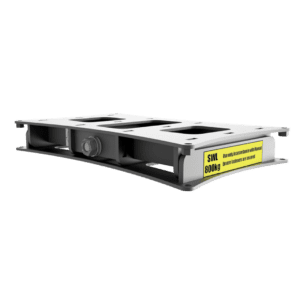

Side Shift

Side Shift

The Side Shift module attaches to the turntable and allows operators to mount various other component specific attachments onto it. The module can be manually adjusted +/- 50mm (2inch) sideways allowing operators greater control when lining up components during installation.
TED-ATT-010-00

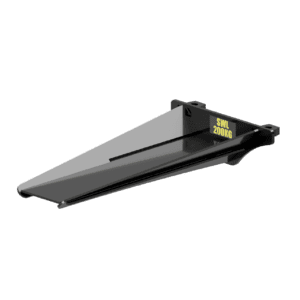

Track Roller Carrier

Track Roller Carrier

The Track Roller Carrier’s intended purpose is to aid in the removal and replacement of track rollers, lowering the manual handling component and removing the need for placing hands in harm’s way. When used by itself the Track Roller Carrier has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-034-00

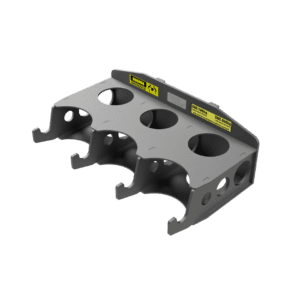

Boomerang Stand

Boomerang Stand

Designed to assist in positioning Boomerang Stands into position. The attachment has been designed to carry the Boomerang Stand in three different positions to allow operators to place the stands up against a wall or obstacle. When used by itself the Boomerang Stand has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-021-00
Grader Cutting Edge

Grader Cutting Edge

The Grader Cutting Edge Tool can be utilised to take the weight of the CET from a variety of graders. The attachment is fitted with two (2) adjustment bolts which can be tightened to assist in stabilising the CET during transit and installation. When used by itself the Grader Cutting Edge has a SWL of 200kg (440lbs), however if used with the TED Counter Balance the SWL can be increased to 400kg (880lbs).
TED-ATT-036-00

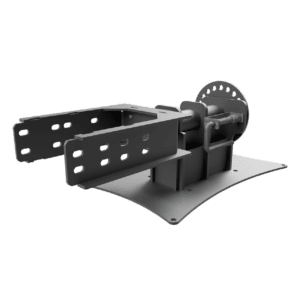

Transmission Pump Tool

Transmission Pump Tool

The Transmission Pump Tool can be rotated manually and incorporates an interchangeable mounting weldment allowing operators to use the tool for various pumps.
