Attachments LA40 Large Gimble
Large Gimble
Back to Attachments

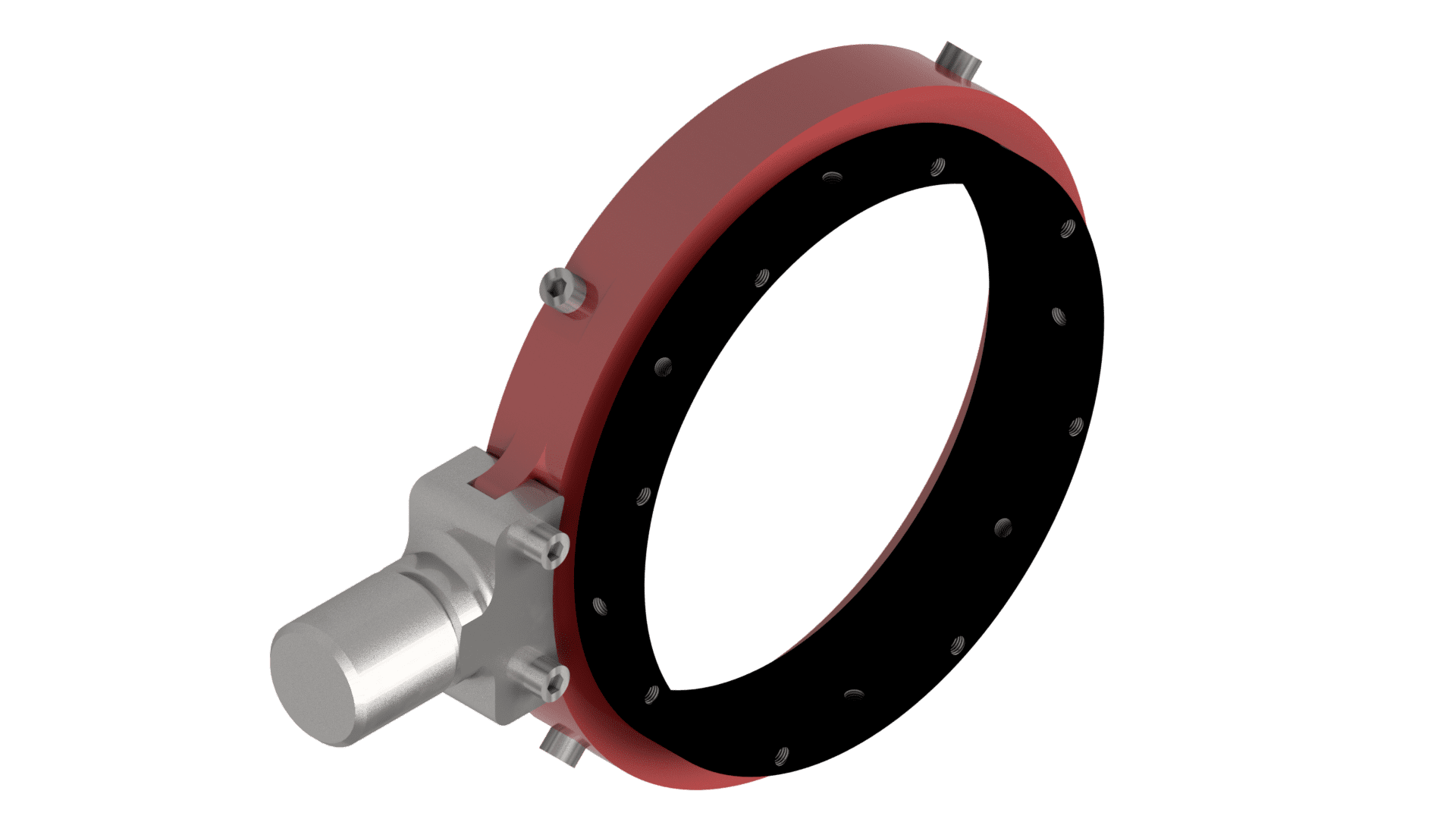

Large Gimble

PART NO. AGA-GIM-100-00

The Large Gimble features an inner diameter of 150mm (5.9 inches) and allows operators to achieve controlled tool rotation. This functionality is particularly useful for aligning socket heads and ensuring precise positioning during lifting or assembly tasks. Designed for seamless integration with the Lift Assist 40, the Large Gimble enhances versatility and accuracy across a range of applications.

Safe Working Load: 40kg
Attachment Type: Accessory
Tare Weight: 1.4kg
Dimensions: (LxWxH)
235 x 200 x 45mm
9.25 x 7.87 x 1.77inch
Part No: AGA-GIM-100-00

Interested in these products?
Request a Quote
Like this Product?
Share with your friends

Other attachments

AGA-ARM-100-017
S-Bend Extension Arm

S-Bend Extension Arm

The S-Bend Extension Arm provides operators with an additional 350mm (13.8 inches) of vertical reach, making it easier to lift, hold, or position components in hard-to-access areas. Designed for seamless integration with the Lift Assist 40, the S-Bend improves versatility when working in environments where extra height or clearance is required.
AGA-ARM-100-014-06
Norbar Attachment

Norbar Attachment

The Norbar Attachment mounts directly into the Lift Assist 40 quick-release housing, allowing operators to connect seamlessly to the Norbar Gimble mount. It provides a secure and stable connection, improving the handling and positioning of components during lifting operations. Designed for quick installation and removal, the Norbar Attachment enhances versatility and efficiency when working with a variety of loads and applications.
AGA-GIM-100-00(s)
Small Gimble

Small Gimble

The Small Gimble has an inner diameter of 100mm (4 inches) and provides smooth tool rotation, allowing operators to easily align socket heads for precise positioning. Designed for seamless integration with the Lift Assist 40, it enhances versatility and accuracy across a range of lifting and assembly tasks.
AGA-ARM-100-030-00
Hydraulic Torque Wrench Attachment

Hydraulic Torque Wrench Attachment

The Hydraulic Torque Wrench attachment was designed to hold the tool in place allowing the operator to control it from a distance to eliminate the risk of oil injection and hand crushing injuries. A single operator can position the tool as required, step back and then control the wrench from a safe distance. With the two points of articulation the operator can orientate and then hold the tool in any position to perform any required task safely. The Hydraulic Torque Wrench attachment can easily be fixed to the LA40 arm via the quick release pin.
