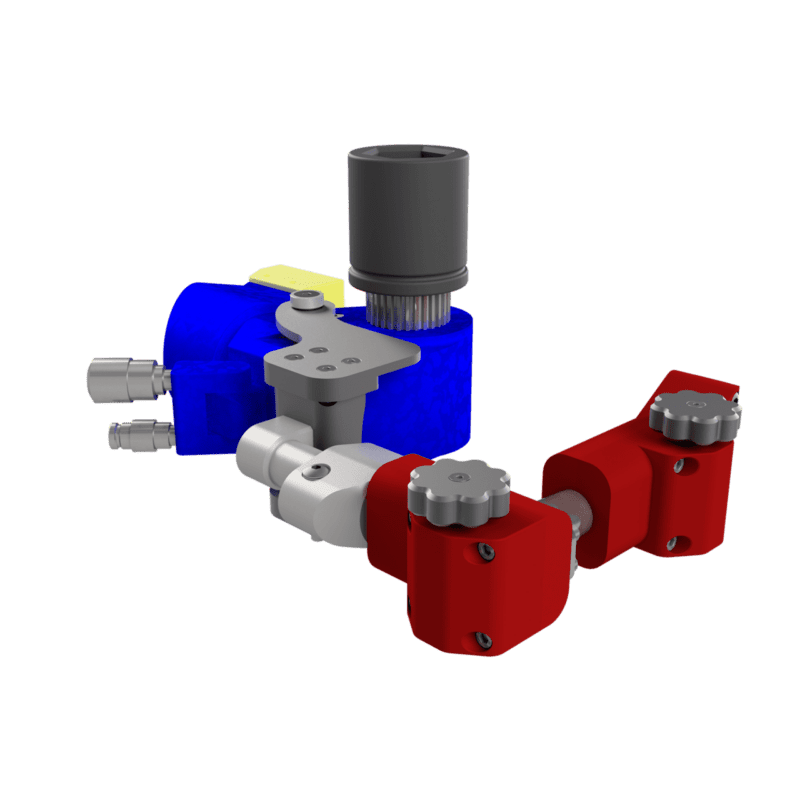

Hydraulic Torque Wrench Attachment

PART NO. AGA-ARM-100-030-00

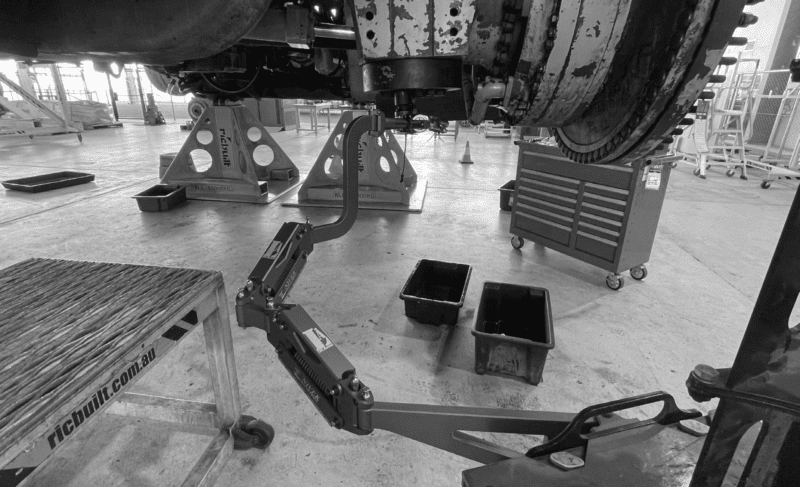

The Hydraulic Torque Wrench attachment was designed to hold the tool in place allowing the operator to control it from a distance to
eliminate the risk of oil injection and hand crushing injuries. A single operator can position the tool as required, step back and then
control the wrench from a safe distance. With the two points of articulation the operator can orientate and then hold the tool in any
position to perform any required task safely. The Hydraulic Torque Wrench attachment can easily be fixed to the LA40 arm via the quick
release pin.

Safe Working Load: 32kg / 70lbs
Attachment Type: LA40
Tare Weight: 8kg / 18lbs
Dimensions: (LxWxH)
240 x 270 x 100mm
9.4 x 10.6 x 3.9inch
Included in package: 1x Hydraulic Torque
Wrench Attachment:
1x Quick Release Male
1x Mounting Bracket
(advise what size)
1x Set of spacer plates
1x Set of tool brackets
(advise what type)
Part No: AGA-ARM-100-030-00

Used on
Caterpillar, Enerpac, Hitachi, Hytorc, Komatsu, Liebherr Ultra Class
