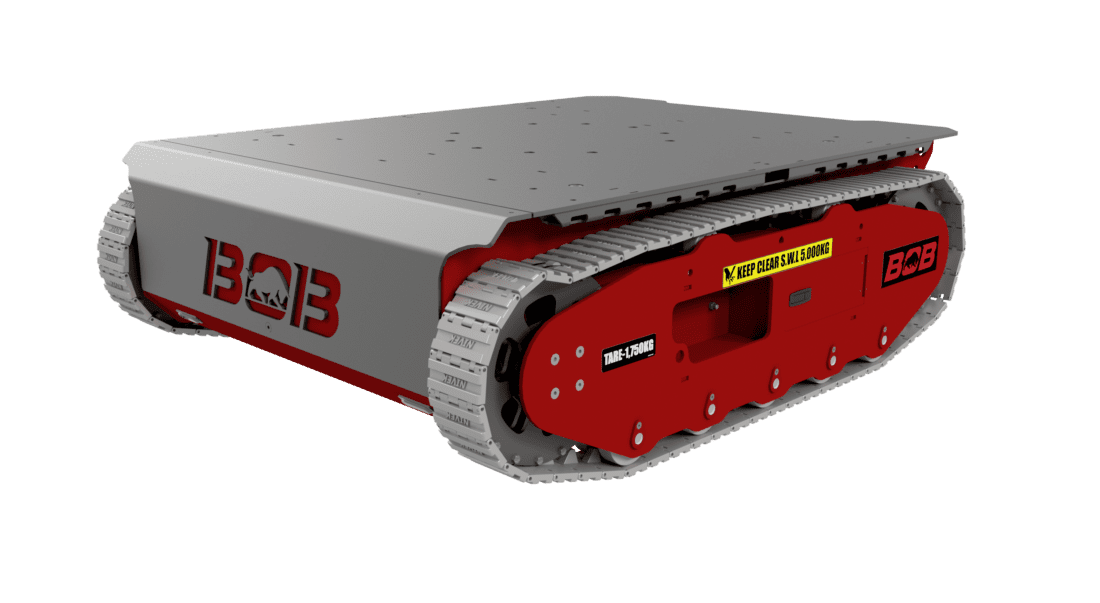

BOB 5T Tracked Carrier

Download Spec Sheet

Removing the risk from real heavy lifting

The big brother of BOB 0.5T & 1.5T, giving you an even greater load capacity of up to 5,000kgs.

When you need some serious carrying power, the BOB 5T tracked carrier has you covered. Offering a heavier lifting capability, BOB 5T can handle loads of up to 5,000kgs. The remote control operation, all-terrain design and a variety of custom-made smart attachments, make heavy lifting safe and seamless with BOB 5T.

Watch the Video

Powerful Options

Choose from the standard 9.6kWh battery or upgrade to a massive 14kWh battery supply.

Serious Carrying Capacity

BOB 5T has been designed to carry loads of up to 5,000kg.

Wireless Control

Navigate the BOB 5T and any smart attachments effortlessly via the wireless remote control.

Any Time, Any Place

Tackle any job in the toughest conditions with BOB 5T’s all-terrain capability.

Smart Adaptability

With several custom-made smart attachments available, BOB 5T can take on a variety of tasks.

Technical Specifications

Length 1,980mm
Width 1,602mm
Height 608mm
Tare Weight (kg/lbs) 1,750 / 3,858
Safe Working Load (kg/lbs) 5,000 / 11,023
Ground Speed Proportional control – Maximum speed 5km/hr (3.1m/h)
Battery System 9.6kWh standard battery system & 14kWh upgraded battery system
Drive System Two (2) 48VDC Brushless electric drive motors and motor controllers

3.5kW with 51:1 Inline gearbox, Electromagnetic brake
Radio System Scanreco G3B Remote Control System, 2.4Ghz operating frequency
Part Number BOB-5T-ASY-000
Complies With AS1170.0, AS1170.1, AS4100
Specification Sheet Download PDF

Superior Safety Features

  • Developed to reduce lifting-related injuries
  • Wireless controls for risk-free transportation
  • Built-in tilt sensor for operator alerts outside operational parameters
  • Smart attachments handle any heavy load-carrying requirements
  • Safely tackle any terrain
Safe. Efficient. Reliable. Our Equipment

Key Features

  • AUX power outlet for custom-made smart attachments
  • Wireless remote control operation
  • Versatile custom-made smart attachments
  • Ongoing maintenance and support
  • Greater load capacity of up to 5000kgs
  • Dual electric drive motors

Our Equipment Range

TED

The Tracked Elevating Device (TED) is an essential safety solution for anyone working with dozers, graders, dump trucks, and other mining and earth-moving machinery, offering the safest and most productive way to remove and replace heavy components.

TED-ASY-000-00

Lift Assist 40

Lift Assist 40 (LA40) is a tool lift system designed to take the weight of rattle guns, impact drivers and torque tooling, reducing risk of fatigue and musculoskeletal injuries.

AGA-ARM-100-00

Big TED

Big TED is a larger, more powerful version of the original TED™, designed for increased lift capacity, handling loads up to 3,000kgs while maintaining a low profile, manoeuvrability, and precision with joystick control and a rechargeable battery system.

BTD-ASY-000-00

BOB 5T Tracked Carrier

The BOB 5T is a powerful, remote-controlled, all-terrain tracked carrier built to handle heavy loads effortlessly, offering an impressive load capacity of up to 5,000kgs with seamless operation and smart attachments for enhanced efficiency.

BOB-5T-ASY-000

BOB 0.5T Tracked Carrier

The BOB 0.5T is a revolutionary, remote-controlled, all-terrain tracked carrier, designed to handle heavy material and equipment transportation needs with a 500kg load capacity and smart attachments for maximum efficiency and safety.

BOB-0.5T-ASY-000-00
