Quick Release Coupling Types Explained

Quick release couplings are a common way to practically increase efficiency in any application that requires the frequent connection and disconnection of fluid lines. While commonplace in engineering and other industrial projects, quick release couplings are also used in many other everyday functions, across a variety of fields. Accordingly, there are several different quick release coupling types with strengths and weaknesses depending on their intended use. This article is designed to inform readers about the common quick release coupling types available on the market.

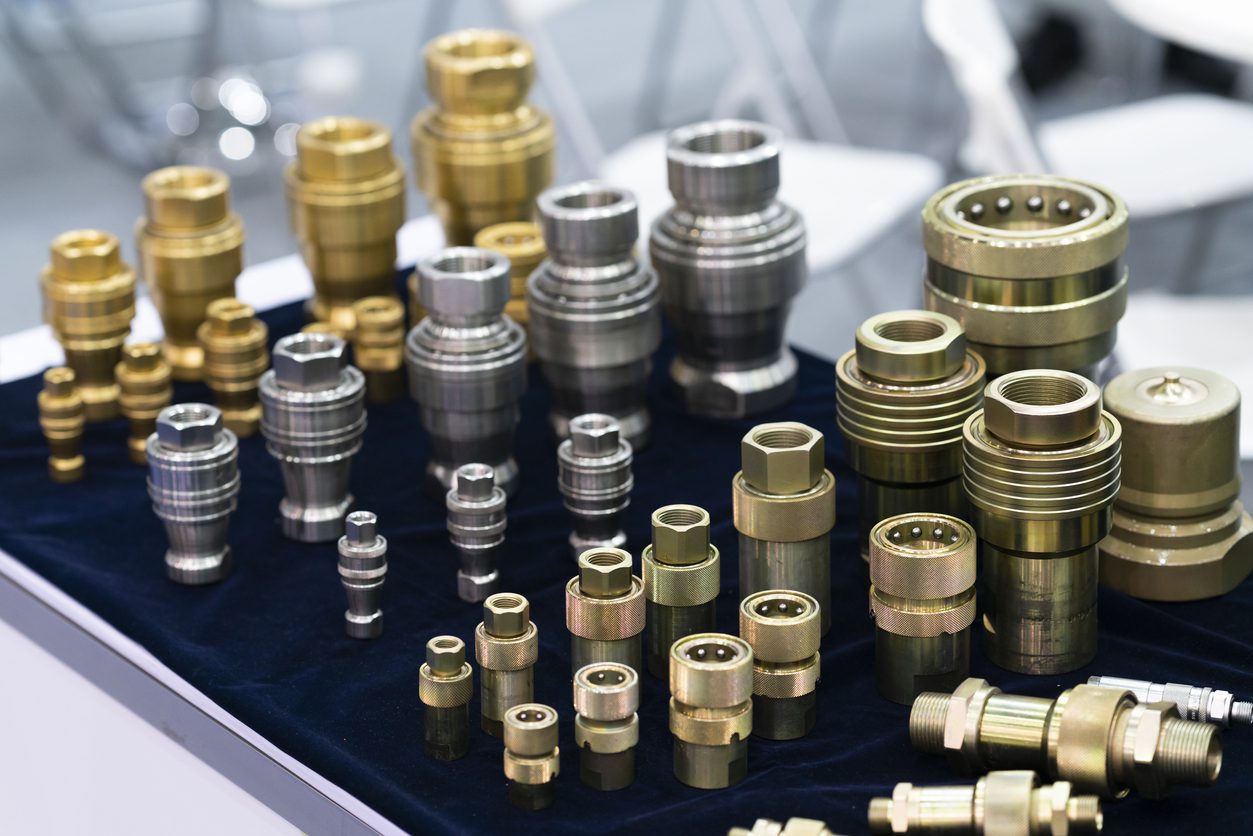

tube quick connect fitting coupling. joint hose oil, water, air time reduce and prevent leak. industrial quick coupling make by steel, stainless, brass

What are quick release couplings?

Quick release couplings, or quick disconnect couplings, are used to provide a simple and fast way to secure or release a tight connection between two fluid lines. They are often hand operated and therefore conveniently negate the need for tools or machinery. When used correctly, the couplings reliably secure a connection and resist any pressures and forces that can break it apart.

How do quick release couplings work?

Quick release couplings consist of two primary components: a male part (aka adaptor or plug) that attaches and fits into a female part (aka coupling or socket). Depending on the quick release coupling type, there are many different ways in which a plug can be secured and locked into the socket.

Where are quick release couplings used?

Quick release couplings are used across a range of industries in various applications. Despite their obvious uses in industrial and engineering contexts that frequently utilise fluids and gases, such as mining and chemical processing. They can also be commonly used in medical equipment found in hospitals; in food processing; in scientific analytical devices; in agriculture and farming; home pneumatic tools; and even in bars and restaurants.

Quick release coupling types

Owing to their ease of use, reliability, durability and versatility, quick release couplings can be used across a range of industries and in a number of applications. Some of the most common quick release coupling types are described below.

Ball-Lock (Ball-Latching)

This is the most commonly used quick release coupling type and has a wide range of uses. It works when a sleeve is pulled back on the socket which allows a group of balls lining the socket to move outward giving clearance for the plug. The plug, with appropriately grooved holes, is placed in the socket and the spring loaded balls push back into place when the sleeve is released which effectively locks the connection in place.

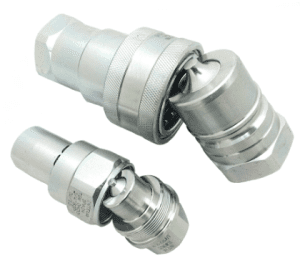

Ball-lock. Image Source: www.rfshydraulics.com

Ball-lock. Image Source: www.rfshydraulics.com


This quick release coupling type locks into place when the plug is inserted into the socket and then two disengaged levers on the socket are flipped over engaging them against the side of the socket which secures the connection.

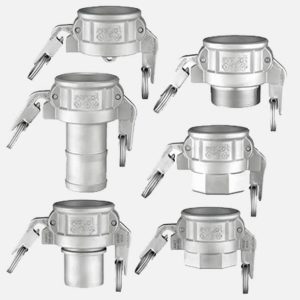

Cam-lock. Image Source: www.flextechhose.co.uk

Cam-lock. Image Source: www.flextechhose.co.uk


This quick release coupling type works as the tapered plug begins pushing rollers within the socket outward. Once inserted the required distance the rollers simply push back in, locking the plug into place.

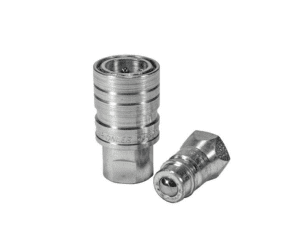

Roller lock. Image Source: https: www.tractorsupply.com

Roller lock. Image Source: https: www.tractorsupply.com


This quick release coupling type works through a push then twist motion of the plug into the socket. The plug features lugs that fit into slots of the socket sleeve. As the plug is pushed into the socket the lugs enter the slots and then when the twist motion is initiated plug and socket lock into place. Twisting the plug in the opposite direction will release the connection.

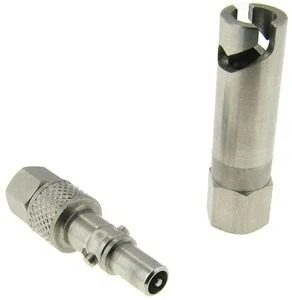

Bayonet. Image Source: www.globalspec.com

Bayonet. Image Source: www.globalspec.com


This quick release coupling type is one of the easiest to operate, as pushing the ramped plug into the socket joins the connection. As the plug enters it pushes back pins within the socket. Once inserted far enough, the spring loaded pins lock the plug into place. Pulling back a spring loaded sleeve allows the pins to move back out releasing the connection.

Pin-Lock. Image Source: https:www.danfoss.com

Pin-Lock. Image Source: https:www.danfoss.com

Which quick release coupling type should I use?

Quick release coupling is intended as a practical solution to increase efficiency when constant connection and disconnection of lines is an issue. Because there are several different quick release types with different advantages and disadvantages it is important that considerations are made around what application and outcomes are being achieved. Consider factors such as:


Will the quick release coupling type withstand constant exposure to the fluid within the line or will it withstand the external conditions around it (including temperature)?


Will the quick release coupling type withstand the maximum pressure and forces that will be applied to it?


Will the quick release coupling type be able to perform its intended purpose and maintain functional flow rates across the system?


How efficiently can the quick release coupling type be serviced, renewed or changed if necessary?
